Stable design

A low center of gravity gives excellent stability.

The cargo-box load is centered over the rear wheels for balanced weight distribution.

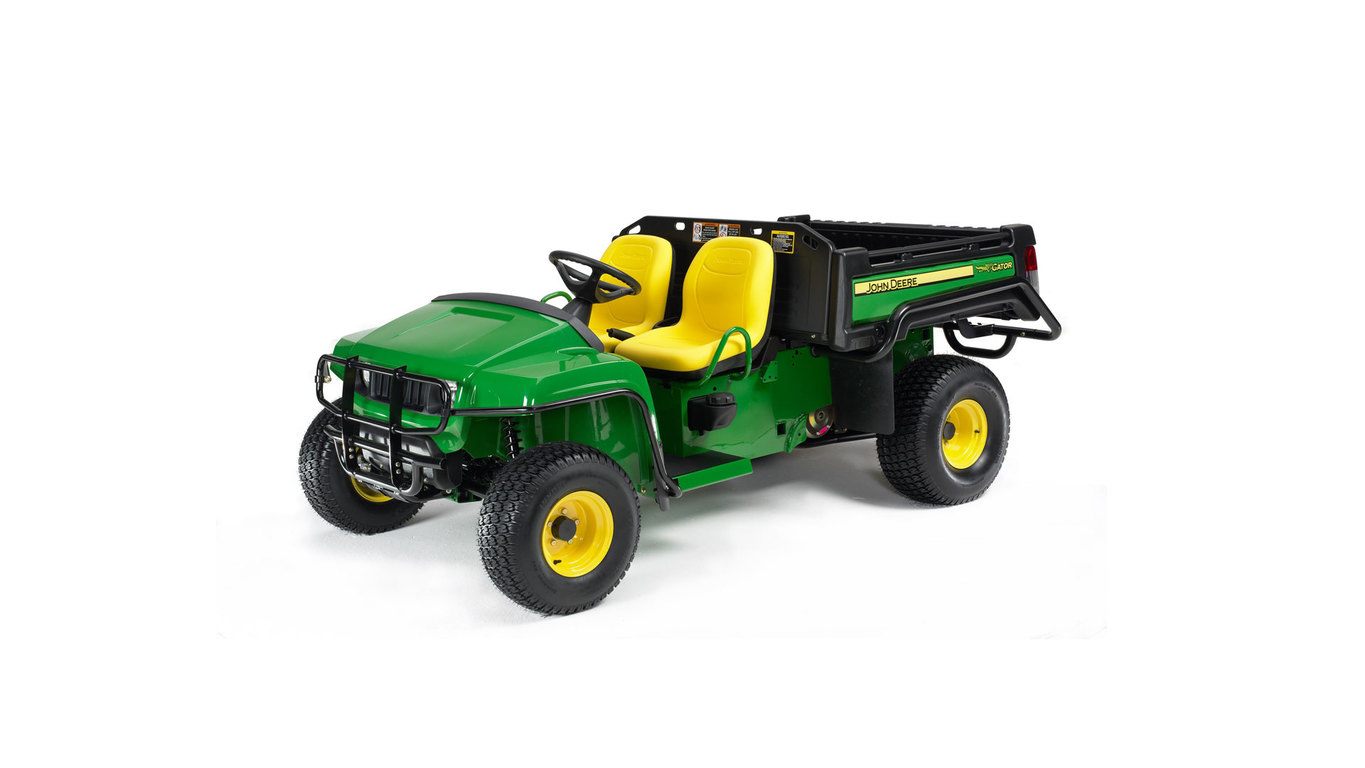

NOTE: Shown with the optional front bumper, brush guard, and floormat.

Automotive-type rack and pinion steering features include:

• Smooth, responsive operation
• Tight turning circle for excellent maneuverability
  • 2.74 m (9 ft) for Gator™ TX 4X2
• Completely sealed for long life

Front suspension

Automotive-type rack and pinion steering

Fully independent, single A-arm suspension features include:

• 127 mm (5 in.) of total travel for better off-road control
• Spring-over-shock dampening
• Cast nodular iron 25-mm (1-in.) diameter spindles
• Automotive-type maintenance-free rubber torsional pivots for long life and quiet operation

Rear suspension

Rear suspension

The semi-independent coil over shock (COS) rear suspension system provides a softer ride.

Hydraulic disc brakes

• Four-wheel hydraulic disc brakes
• Braided stainless-steel brake lines with banjo fittings for increased durability
• Optional hand-lever-operated mechanical park brake system
• Integral cast-iron rotors with wheel hubs for extended life
• Automotive-style dual-circuit master cylinder with a see-through reservoir
• Larger front and rear brake calipers with sintered metallic brake pads
• Smooth-feeling engagement

Deluxe cargo box

Deluxe cargo box with tailgate lowered

The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust, dents, and reduces noise.

Deluxe cargo box tailgate

Tailgate handle

Tailgate lowered to 150 degrees

The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.

The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.

Deluxe cargo box tilt

Integrated handle for manual cargo box tilt

Gas assist (A) and prop rod (B)

The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist (A).

A prop rod (B) is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.

Integrated tie-down points

Integrated tie-down point in cargo box bed

Additional tie-down points (TH 6X4 shown)

The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

• Four corners inside the cargo box bed
• Four points on the load guard directly behind the operator station (A)
• Tie-down bars on either side of the cargo box (B)
• Six points on the underside of the cargo box frame (circled)

Converting deluxe cargo box to a flat bed

Deluxe cargo box converted to a flat bed

The deluxe cargo box easily converts to a flat bed. The flatbed configuration allows loading larger cargo.

Optional accessories

Brake and taillight

Bedmat—protects the steel floor from dents

Optional accessories for the deluxe cargo box include:

• Factory-installed brake and taillight
• Factory-installed spray-in liner (not shown)
  • Improves skid resistance and surface abrasion protection
• Cargo box bed mat
• Cargo box power lift (not shown)

Specifications

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.

(A) AT tires

(B) Turf tires

Four types of flotation tires are available for the Gator™ TX 4X2:

• (A) AT (all terrain) tires
• (B) Turf tires

Product attributes:

• Both options, turf and AT, are 4-ply rated, and have an enhanced blend of material and more content that yields significantly more useful life
• These tread patterns give a more aggressive showroom appeal
• Each tire combines puncture resistance with a tread designed for maximum traction and performance

All tires offer a wide profile and are designed to be inflated at a low psi.

• Provides good flotation and traction in mud, sand, and other wet or soft areas
• Flexes over bumps and ruts for a smoother, more comfortable ride
• Minimizes ground compaction to save turf and prevent ruts in soft ground

NOTE: John Deere recommends that all four or six (6x4 Gator™ models) tires be the same. Although the wheel and tire sizes remain the same, current tires should not be mixed with existing tires. The existing tires will remain available to service existing Gator utility vehicles.

TX engine (shield removed for illustration)

The Gator™ TX 4X2 is powered by an 11.6-kW (15.5-hp)*, 675-cc (41.2-cu in.), V-twin, four-cycle gas engine.

*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

The model year 2015 TX (49 state) and beyond receives evaporative emissions components to meet Environmental Protection Agency (EPA) Clean Air Act requirements.

Engine features

This engine has several performance and reliability features:

• Overhead valve design for greater efficiency and fuel economy
• Full-pressure lubrication system
  • Oil filter is standard on the Gator TX 4X2 engine
• Replaceable single-element air cleaner with remote intake
• Large-capacity spark-arresting muffler
• Low fuel consumption and large 18.9 L (5 U.S. gal.) fuel tank;
  fuel consumption at half load and average speed is as follows:
  • Gator TX 4X2: 1.3 L/hr (0.35 U.S. gph)
• EPA compliant

Gator™ TS 4X2/Gator TX 4X2

Power is transmitted from the engine, through a continuously variable clutch system, to a transaxle. Power is transmitted from the transaxle directly to the rear axle.

Key elements of the drive system are as follows:

Variable-speed drive

The variable-speed drive consists of two clutches connected by a drive belt:

• Drive clutch is attached to and rotated by the engine.
• Driven clutch is attached to and drives the transaxle.

Features include:

• Infinite selection of speeds (0 km/h to 32 km/h [0 mph to 20 mph])
• No shifting necessary as operator increases speed
• Adjusts speed to the load to avoid bogging down when going up a hill or through challenging conditions because the wrong gear was selected

Variable-speed drive

How the variable-speed drive works:

1. As the engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts the drive speed upward or downward, so the engine rpm remains constant at constant throttle position.

Transaxle

The transaxle is fully enclosed and runs in oil for reliability.

Helical gears are used for quiet operation.

Differential design reduces scuffing of the turf during turns because the inside wheels turn slower than the outside wheels (vehicles that have a solid axle shaft must skid the inside wheel when making a turn).

Traction assist (differential lock) is built into the transaxle:

• Allows locking the rear drive wheels together
• Provides increased traction in tough spots

A neutral start safety interlock is provided for the engine ignition system.

Heavy-duty rear axle housings

Gator TS 4X2

Bolt-on cast-aluminum rear-axle housings provide an extremely strong supporting structure.

• Large, sealed bearings are located inside the housing for better protection
• Forged-splined shaft for increased torsional strength

Gator TX 4X2

One-piece forged axles are splined for maximum strength.

• Large, sealed bearings for better protection and load-carrying capabilities
• Forged-splined shaft for increased torsional strength
• Nodular cast-iron housing for increased durability

NOTE: The TS 4X2 is not sold in Australia/New Zealand.

Rear receiver hitch (shown on TX 4X2)

The rear receiver hitch is standard equipment on the Gator™ TX 4X2 and TX Turf.

• Versatile hitch accepts a 31.75-mm (1.25-in.) drawbar
• No ball mount comes with the hitch

Side-by-side bucket seating

Numerous features offer the operator and passenger a comfortable ride and provide many operating conveniences.

• Side-by-side bucket seating provides room for one operator and one passenger
• Hip restraints serve as a handhold and help to keep the operator and passenger in their seats over rough terrain
• Both seats tilt forward for dry storage and ease of service
• Choice of adjustable or non-adjustable driver's seat
• Hour-meter is standard to assist in maintaining regular service intervals
• Integrated cupholders
• 12-V outlet located on instrument panel

Convenient walk-through operator station

The control location and walk-through platform provide easy entry/exit for operator and passenger.

NOTE: Shown above with the optional front bumper, brush guard, front fender guard, and floor mat.

NOTE: The front bumper is standard on the Gator™ TH 6X4 Diesel.

• All models feature a park brake indicator light, hour-meter, and tank-mounted fuel gauge as standard equipment
• Traction assist (differential lock) is hand operated and conveniently located between the operator and passenger seats
• Traction assist indicator light (Gator TH 6X4 only)
• Glove box is located in the dash to provide a convenient storage area for small tools and the operator's manual
• Grab bar is provided for the passenger
• Center-mounted key switch
• Additional storage is provided between the seats
