1025R Sub-Compact Tractor
- John Deere
- Compact Tractors 1 Series
Find Your Nearest Location
Key Features & Specs
- Powerful Tier 4-compliant diesel engine
- Premium Operator Station with ergonomic seat, armrests and fender lights
- AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
- 3PT Hitch Category 1
- HP 23.9*
- PTO HP 18
- Transmission Type Hydrostatic - 2 Range
- Cab or Open Station Open Station or Cab (optional)
- 2WD or 4WD 4WD
![](https://pape-foursite-stage.s3.amazonaws.com/agriculture.papemachinery.com/b8f95f2d-0aba-4961-bf39-37bc3c793298.jpg)
- + Expand All
- - Close All
-
Comfortable and convenient open operator’s station
1025R open operator station
The 1025R open operator station is designed for greater comfort and increased visibility.
Comfortable operation
- Thick, textured rubber floor mat reduces vibrations and absorbs shock and noise
- Step-through flat platform and fender-mounted handrails make it easy to get on and off the tractor from either side
- Controls are conveniently located next to the fenders and are color-coded for quick identification
- Tilt steering lets you keep your arms in a natural position to reduce fatigue
- Deluxe suspension seat has moveable armrests and provides great back support
- Easy access toolbox puts common tools within quick reach
- Standard 12-V outlet for convenient charging of electronics
- Easy-lift hood with dual gas-charged lift struts as standard equipment. A simple flip of the latch lets you open the rugged composite hood, providing wide open access to the engine compartment.
- Foldable rollover protective structure (ROPS) keeps you protected during operation and improve the ability to store tractor in a garage
Foldable Roll-Gard ROPS
Foldable Roll-Gard™ ROPS is standard equipment on 1025R
Increased visibility
Standard (and optional) lighting shown
- Sloping hood design provides improved visibility especially during front loader work
- Standard lighting equipment allows you to work from early in the morning to late at night:
- Two front-mounted sealed-beam halogen headlights
- Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
- Two additional fender lights are standard on the 1025R
- Additional front- and rear-light kits are available
-
Quickly and easily change speed and directions with Twin Touch foot controls and Hydrostatic transmission (HST)
Twin Touch™ pedals
The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.
- Ideal for loader or mower applications where frequent direction and speed changes are needed
- No clutching for fast direction changes
- Match the job at hand with infinite ground speeds
-
Flexibility in operation with multiple mid-mower lift system options
Mid-mower lift system options
Mid-mower lift system options
Standard mechanical mower lift
The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.
Optional hydraulic mower lift
The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.
Optional independent hydraulic mower lift
The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.For more information on this mid mower lift system click here.
-

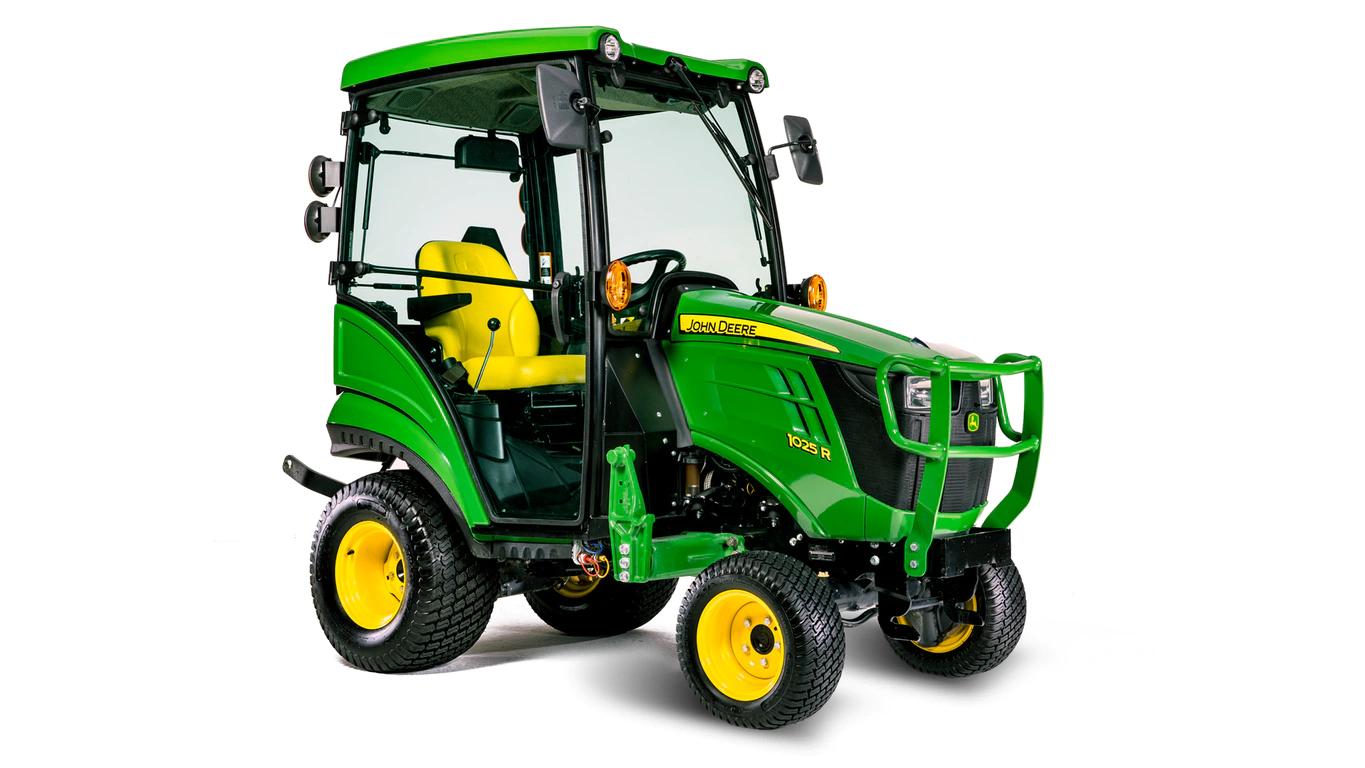

Get year-round performance with the optional cab
Heated cab is ideal for cold weather chores
The John Deere 1R cab is about comfort, security, and helping you get year-round performance. The cab offers protection from the elements to expand the versatility of 1025R Tractors to perform in all climates.
- Sound damping system for quiet, peace-of-mind operation
- Heated cab keeps you warm in colder months
- Removable doors and front and rear windows that open nearly 90 degrees provide a cooler work environment in warmer months.
- Excellent visibility to your surroundings with the full glass doors
- Compatible with all tractor implements except the 260B Backhoe
-
Excellent maneuverability and easy operation with standard four-wheel drive (4WD) and power steering
Standard 4WD and power steering make 1 Family Tractors excellent for mowing
Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.
- Narrow overall width allows you to work in tight areas where most compact tractors just cannot fit. The 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all types of terrain.
- Power steering means fewer turns of the steering wheel than manual steering, which is especially valuable when mowing around obstacles or during front loader work.
- High horsepower-to-weight ratio makes the 1 Family Tractors a good choice for a variety of tasks. The overall tractor weight reduces ground compaction and makes them excellent for mowing.
- The fully-independent power take-off (PTO) allows engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.
-
Spend more time working and less time switching equipment with easy implement swaps
Drive-over deck makes connection simple
1 Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.
- AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
- Load-N-Go attachment: Easily move your 54D or 60D Autoconnect Deck with your John Deere Loader after it has been disconnected from the tractor with the Load-N-Go ramps.
- Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
- Quik-Tatch™ front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
- iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
- Position control hitch: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
- Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.
1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.
- AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
3-point hitch
Type | Limited Category 1 |
Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
Cab
Doors | Two |
Seat equipment | Premium seat |
Air conditioning, temperature differential | Heat only |
Dimensions
Limited slip differential | No |
Wheelbase | 1450 mm 57.1 in. |
Turning radius without brakes | Outside front tire: 2.51 m 8.2 ft |
Front axle clearance | 195 mm 7.7 in. |
Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
Electrical
Alternator (12-V) | 40 amp |
Battery size | 500 CCA |
Starter size | 1.2 kW 1.6 hp |
Engine
Type | Diesel |
Compression ratio | 23.1:1 |
Injection pump type | Indirect injection |
Rated engine speed | 3200 rpm |
Lubrication | Pressurized |
Cooling system | Water pump |
Aspiration | Natural |
Number of cylinders | Three |
Engine model | 3TNV80F-NCJT |
Emissions compliance | Final Tier 4 |
Cylinder liners | Cast-in-block |
Air cleaner | Dual element with mechanical restriction indicator |
Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 seconds |
Bore and stroke | 80 x 84 mm 3.15 x 3.31 in. |
Engine torque at rated speed | 53.1 Nm 39.2 lb-ft |
Power take-off (PTO) power | 12.8 kW 17.2 hp |
Manufacturer | Yanmar® |
Fuel tank capacity | 24 L 6.3 U.S. gal. |
Cylinders/displacement | Three cylinders: 1.267 L 77.3 cu in. |
Final drive
Differential lock | Yes |
Type | Spur gear |
Fluid capacities
Crankcase with filter | 2.7 L 2.9 qt |
Transmission and hydraulic system | 12.3 L 3.2 gal. |
Fuel system
Type | Indirect injection |
Hydraulics
Pump type | Single gear |
Remote control valves available | Three |
Type | Open center |
Draft control sensing | Position control |
Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
Maximum operating pressure | 138 bar 2000 psi |
Key Specs
Standard transmission; forward/reverse | Hydrostatic - two range |
Cruise control | Standard |
Hitch type | Limited Category 1 |
Wheelbase | 1450 mm 57.1 in. |
Power take-off (PTO) power | 12.8 kW 17.2 hp |
Implement hydraulics | 13.2 L/min 3.5 gpm |
Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
Steering hydraulics | 13.2 L/min 3.5 gpm |
Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
Miscellaneous
Toolbox | Yes |
Operator station
Gear shift location - console/floor | Left-hand side |
Platform - flat/straddle | One-piece semi flat |
Rollover protective structure | Type Foldable Yes |
Power take-off (PTO)
Clutch | Wet disk |
Brake (for mid and rear PTO) | Wet disk |
Control | Independent |
Standard | Rear: 540 rpm Mid: 2100 rpm |
Tires
Front | R3 Turf: 18x8.50-10 R3 Turf Radial: 18x8.50-10 R4: 18x8.5-10 |
Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
Front tread range | 931 mm 36.7 in. |
Rear tread spacing | 895 mm 35.2 in. |
Transmission
Cruise control | Standard |
Creeper | No |
Steering | Power |
Left-hand reverser | No |
Differential lock | Yes |
Final drive | Spur gear |
Brakes | Wet disc (left-hand pedal) |
Standard transmission; forward/reverse | Hydrostatic - two range |
Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
