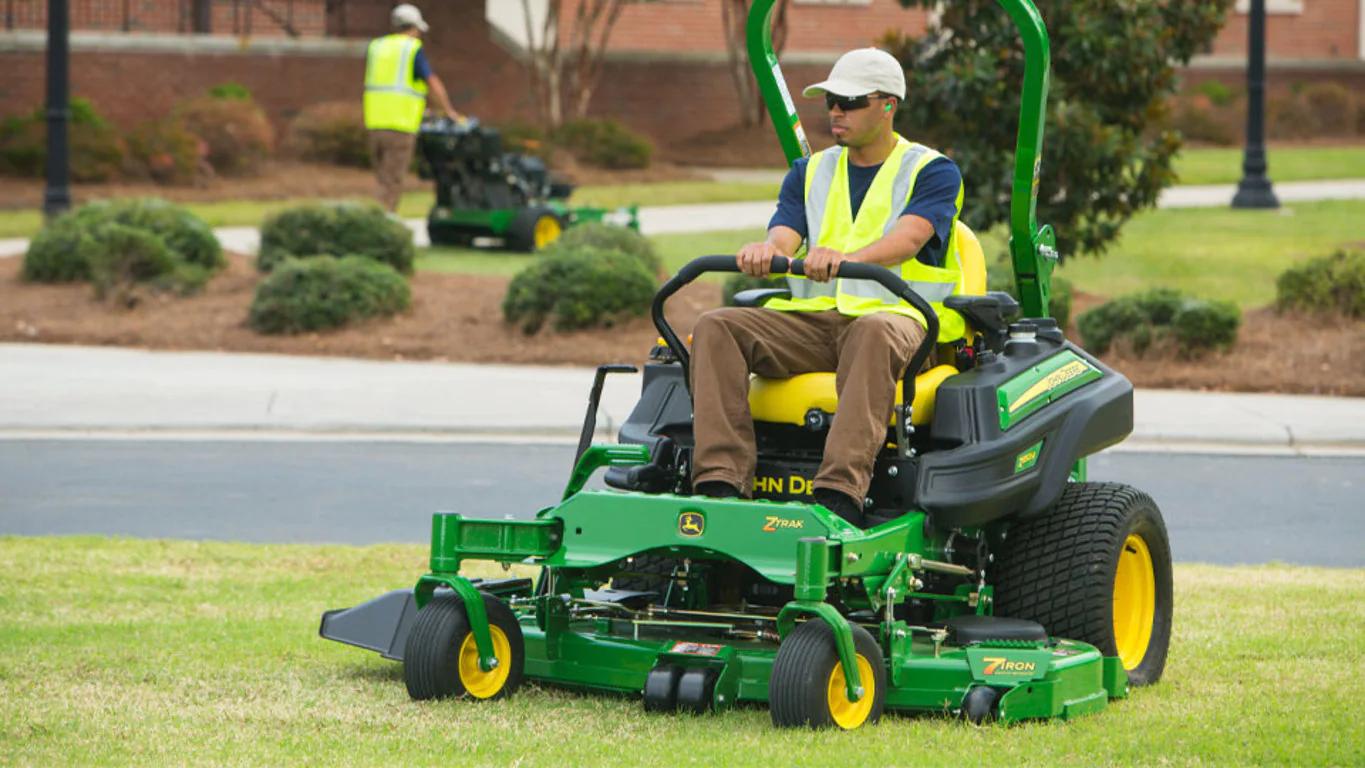

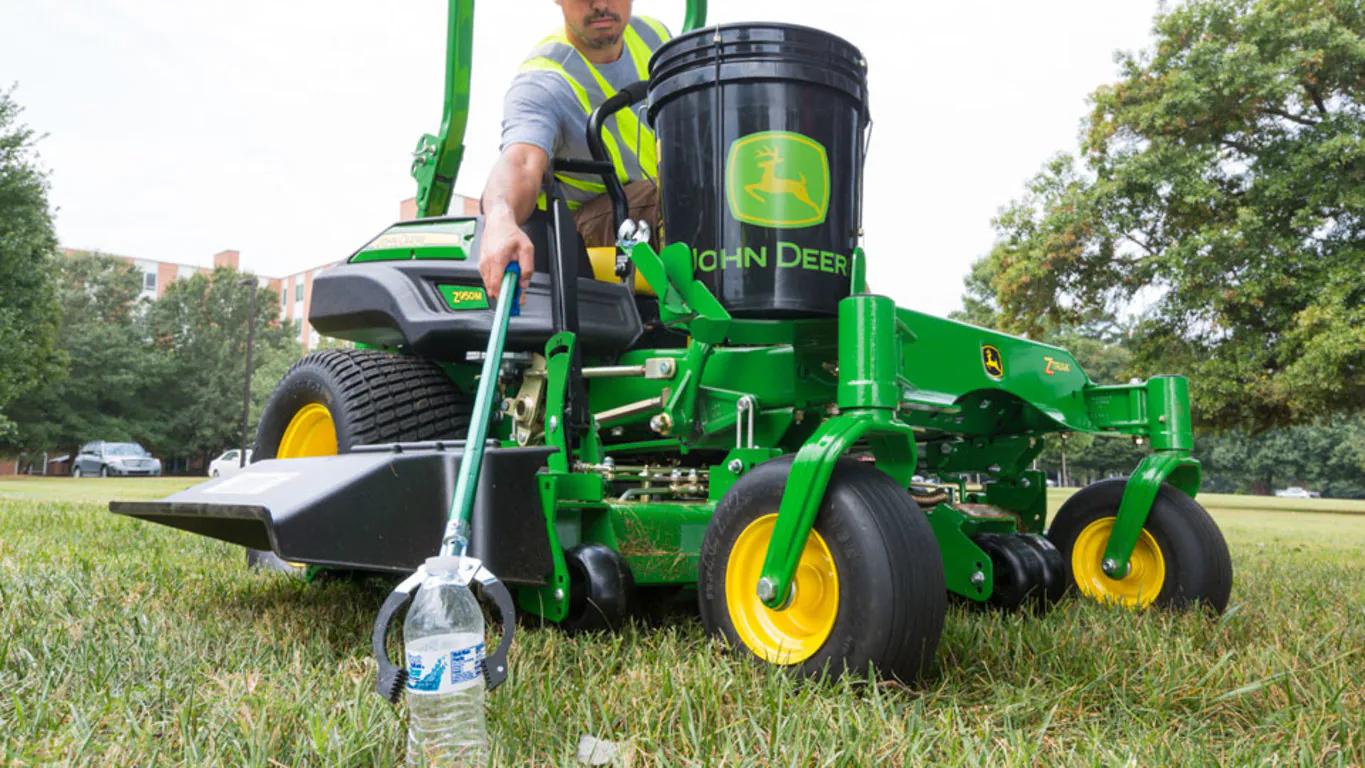

Z950M ZTrak™ Zero-Turn Mower
- John Deere
- Ztrak Zero-Turn Mowers
Find Your Nearest Location
Key Features & Specs
- 7-Iron™ PRO Mowing Deck
- Propane Option Available
- Gasoline Engine
- Rear Discharge Deck
- HP* 27.0 (20.1 kW)
- Fuel options Gasoline
- 7-Iron™ PRO side discharge deck options 60", 72"
- Rear Discharge Deck options 72"
- 7-Iron™ II side discharge deck options n/a
- 7-Iron™ PRO Mulch On Demand deck options 54", 60"
![](https://pape-foursite-stage.s3.amazonaws.com/agriculture.papemachinery.com/a964aeed-956d-4832-98e5-23be55869518.jpg)
- + Expand All
- - Close All
-
Powerful 27-hp (20.1-kW) commercial-grade engine delivers class-leading performance and efficiency
Z950M and Z950R engine
The Z950M and Z950R are powered by an air-cooled, vertical shaft engine:
- 27-hp (20.1-kW) gas engine
Engine features include:
- Overhead valve design
- More horsepower and torque per cubic inch of displacement
- Better fuel efficiency
- Full-pressure lubrication with full-flow filter
- Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
- Oil filter helps keep oil clean for increased engine life
- V-twin big block design
- Vertical shaft
- Easy-access, dual-element air filter with quick-release latch
- 15-amp alternator
- Fuel pump
- Complies with strict Environmental Protection Agency (EPA) and California Air Resources Board (CARB) emission standards without loss of horsepower or torque
- Aluminum block engines
- Effectively dissipate heat
- Lightweight and strong construction
- Extend engine life due to elimination of debilitating engine temperatures
- Air-cooled engine design
Air cleaner filters out dust that can damage an engine
Engine air cleaner
Air cleaner cover removed
ZTrak™ Z900 Mowers are equipped with a dual-element, canister-style air filter, easily accessible from the rear of the machine without tools.
- The filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
- Filters are extremely easy to change when required.
- Pre-cleaner provides more protection against contamination in dusty and dirty applications.
Mow all day on a single tank of fuel with efficient and easy-to-fill fuel tank
Fuel tank and filler neck
Fuel filler neck
The ZTrak™ Z900 Mowers are equipped with one single-fill, top-draw fuel tank:
- 11.5-U.S. gal. (43.5-L) capacity enables operators to mow all day without refueling.
- The fuel gauge makes it quick and easy to see how much fuel is in the tank.
- Top draw provides added safety.
- A large fuel-filler neck is angled to make it easy for an operator to complete the fueling process.
Under normal conditions, load, and operation, fuel consumption for the Z900 ZTrak Mowers is 1.5 U.S. gph (5.7 L/hr) to 2.2 U.S. gph (8.3 L/hr), depending on the horsepower and conditions.
-
Three-year, bumper-to-bumper warranty
Z955M ZTrak™ Mower
Z955R ZTrak Mower
E and M Series 3-year, 1200-hour bumper-to-bumper warranty
An exclusive 2-year, unlimited hour/3-year, 1200-hour (whichever comes first) bumper-to-bumper warranty is standard for all John Deere E and M Series Mowers. The warranty is best in its class and places John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.
NOTE: 36 months or 1200 hours, whichever comes first. For the first 24 months, there is no hour limitation.R Series 3-year, 1500-hour bumper-to-bumper warranty
An exclusive 2-year, unlimited hour/3-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard on all John Deere R Series mowers. The warranty is best in the industry and puts John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.
NOTE: 36 months or 1500 hours, whichever comes first. For the first 24 months, there is no hour limitation.Mower decks are safety certified
Z950M ZTrak Mower
Mowers decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.
-
Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
60-in. (152-cm) Rear-Discharge Mower Deck
72-in. (183-cm) Rear-Discharge Mower Deck
For professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere Fastback PRO rear-discharge mower decks deliver a commercial zero-turn mowing solution for both gas and diesel machines. Advantages of a rear-discharge mower include:
- Less chance of damage from objects being thrown from the mower deck
- Time savings with the ability to mow closely around fixed objects with either side of the deck
- A cleaner mowing experience by lessening the amount of debris that can blow onto the operator
A rear-discharge mower deck is ideally suited for:
- Schools
- Parks
- Playgrounds
- Traffic areas (city boulevards, roadsides, etc.)
- Areas with long, grassy spots that need to be cut, where you are not as concerned about wide dispersal of grass (park areas, roadsides, etc.)*
*NOTE: Operators maintaining turf outside of target areas are encouraged to evaluate rear-discharge dispersion through a cut quality demonstration to ensure satisfaction.
Compatibility
ZTrak™ Z900 Series Model 60-in. (152-cm) Rear-Discharge Mower Deck 72-in. (183-cm) Rear-Discharge Mower Deck Z930M X --- Z950M --- X Z955M EFI X X Z950R X --- Z955R EFI X X Z970R --- X Z994R X X Z997R X X Commercial-quality deck design
A large volume of material can be thoroughly processed with the deep-deck design:
- Unique baffling system is designed to reduce clumping and windrowing often associated with rear-discharge mowers.
- Efficiency is enhanced with baffles surrounding each blade to control material as it is moved to the rear.
- Material exits the deck quickly as the baffles are lower at the rear.
- Movement of material is controlled to minimize the likelihood that clippings are thrown onto unwanted areas.
- Less debris gets on the operator as material is directed to the rear and toward the ground.
- Debris is kept low and directed into the turf by the flexible rear shield.
Level cut
Center deck rollers and left wheel
Right-rear deck wheel
The deck is suspended from and supported by the machine to provide a level cut. Mower deck wheels and rollers help smooth out the mowing job in uneven conditions and reduce the chance of scalping the lawn:
- Two wide front rollers at the center of the mower support the deck when necessary to prevent scalping.
- Wheels at all four corners protect the deck from scalping at the sides of the mower.
- Continued effectiveness results from wheels and rollers that are double captured for extra strength, which reduces the chance of damage.
- Height of rollers and wheels is adjustable to suit mowing conditions.
- Higher setting (shown in images) are used when mowing at lower cut heights and for rougher conditions at all cut heights where you want to reduce the chance of the wheels hitting the ground.
- Lower settings are used for higher cut heights and for helping to smooth out the mowing job.
- Mower cut height is adjustable from 1 to 5.5 in. (2.54 to 14 cm) in 0.25-in. (0.64-cm) increments from the machine operator’s station.
Heavy-duty components for long life
Strong, reinforced deck
Right trim-side wear guard
These rear-discharge decks are designed to stand up to heavy-duty commercial use:
- Superior strength and durability come from a 7-gauge, 0.179-in. (4.56-mm) steel deck.
- Experience extra strength and long life with a fabricated deck design that is formed, welded, and reinforced for extra protection from damage.
- The front of the deck is protected from damage by a 1.5-in. (3.8-cm) tall by 0.5-in. (1.3-cm) thick solid steel bar welded to the mower deck for additional strength.
- Both sides of the deck have bumpers that are made from compression molded ultra-high molecular weight (UHMW) polyethylene plastic.
- The bumpers provide great abrasion resistance to protect the machine and the property.
- Additional strength is provided by a 0.5-in. (1.3-cm) by 0.5-in. (1.3-cm) thick solid steel bar.
Cast-iron blade-spindle housing
Extra reliability and long life are provided by cast-iron blade spindle housings:
- Ductile cast-iron material provides superior impact strength.
- Gusseted design puts reinforcement where it is needed.
- Strength of cast iron protects against damage from blade impacts.
- Chance of deck-shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
- Ability to be reliably rebuilt is provided by use of cast iron.
Ease of service
Quick-release belt cover
Cast-iron spindle housing assembly
Minimal service requirements increase uptime:
- Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
- A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
- This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
- There is only one belt to service.
Extra convenience
Serrated-tread step
Extra convenience and security are provided by a serrated surface that is welded to the top left corner of the deck, providing additional traction when entering and exiting the operator station.
-
Available Mulch On Demand™ deck
Mulch On Demand mower deck
Mower deck with chute closed
The Mulch On Demand mower deck delivers unprecedented levels of productivity and versatility to commercial mower operation. With the ability to switch between side discharge and mulching operation with the flip of a lever as the operator mows, keeping most clippings out of landscaping features and where they are wanted is extremely easy.
Mulch On Demand open
Mulch On Demand closed (latch standard on material collection system [MCS] equipped models only)
Lever position open (latch standard on MCS-equipped models only)
Lever position closed
Key features of the 7-Iron™ PRO Mulch On Demand mower deck:
- Deck can be converted from a wide-open side discharge mode to a fully chambered mulching mode with a single move of a lever.
- NOTE: Mulch On Demand decks are a balance between a side discharge deck and a side discharge deck with a mulching kit.
- Deck is stamped from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
- Significantly fewer welds on the deck shell to wear or break- it is stamped from a single sheet of steel rather than multiple fabrications. Anti-skid step on the deck provides for easy machine mounting.
- Mulch On Demand decks are superior to aftermarket chute blockers due to the movable baffles.
- Higher blade tip speed than many competitors - 18,500 fpm (5,639 m/min) for more blade cuts per inch mowed.
- Rounded corners of the stamped deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
- Deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently.
- Wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
- Three 1-in. (2.5 cm) cold-forged spindles are heat-treated for strength without bulk and are supported by ball bearings, providing reliability and performance; spindle housings are ribbed cast iron providing both excellent strength and heat dissipation.
- The front edge is raised above the blade plane to allow even cutting of tall grass and reinforced with a square bar for durability. The front baffle has been redesigned to better manage airflow and control clippings.
- Dual-captured anti-scalp wheels provide deck flotation over even the toughest terrain.
- Three greasable spindle zerks accessible from the top.
- Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
- A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
- This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
- Blade overlap is 1.6 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, to reduce striping between blades.
- Quick-change, cutting-height adjustment.
7-Iron PRO Mulch On Demand mower deck
M Series R Series Z920M - 48-in. (122-cm) Mulch On Demand Z930R - 54-in. (137-cm) Mulch On Demand Z930M - 60-in. (152-cm) Mulch On Demand Z950R - 60-in. (152-cm) Mulch On Demand Z945M EFI - 60-in. (152-cm) Mulch On Demand Z970R - 60-in. (152-cm) Mulch On Demand Z950M - 54-in. (137-cm) Mulch On Demand
Z950M - 60-in. (152-cm) Mulch On DemandZ960M - 60-in. (152-cm) Mulch On Demand - Deck can be converted from a wide-open side discharge mode to a fully chambered mulching mode with a single move of a lever.
-
Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
There are three seating options available for the M Series, all of which are factory installed:
- Deluxe comfort seat with armrests
- Deluxe comfort seat with armrests and isolation
- Fully adjustable suspension seat with armrests
ComfortGlide fore/aft suspension
ComfortGlide fore/aft suspension control lever
Each seat has the ComfortGlide fore/aft suspension system that gives superior ride comfort over uneven areas:
- Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort.
- Control lever provides the ability to easily lock out fore/aft suspension movement if desired.
- One lever has three functions:
- Slide seat forward and back 3 in. (10.2 cm) to allow the operator the ability to choose the leg room needed
- Activate ComfortGlide fore/aft seat suspension
- Lock out ComfortGlide fore/aft seat suspension
Deluxe comfort seat with armrests
Deluxe comfort seat with armrests
The deluxe comfort seat with armrests is standard on all E and M Series models:
- Rubber springs are provided to increase ride comfort.
- A convenient seat latch makes it easy to lift the seat.
- The seat is factory installed.
Deluxe comfort seat with armrests and isolation
Deluxe comfort seat with armrests and isolation
Rubber isolation mount
The deluxe comfort seat with armrests and isolation is available on the E, M, and R Series:
- Rubber springs are provided to isolate the seat base and to increase ride comfort.
- A convenient seat latch makes it easy to lift the seat.
- Isolation mounting is a good feature to reduce vibration for operators who do not require the fully adjustable suspension seat option.
- Factory installed on Z900s ordered with the deluxe comfort seat with armrests and isolation option.
Fully adjustable suspension seat with armrests
Fully adjustable, mechanical suspension-seat
Suspension seat control
A fully adjustable suspension seat with armrests option is available on the M and R Series:
- Adjustable back angle is provided for individual operator comfort.
- Adjustable lumbar support helps to suit the needs of the operator.
- A suspension seat control dial gives easy adjustment for operator weight and ride comfort.
- A convenient seat latch provides ease of lifting the seat.
- On Z900s ordered with the fully adjustable suspension seat with armrests option, it is factory installed.
Designed for operator comfort
Operator station
Two-lever hydrostatic control provides the following:
- The operator can select the ground speed and direction control simply by moving levers forward or reverse.
- Positive neutral lock position for levers provides added safety.
- Brake & Go operator-presence system returns levers to the neutral position when the brake pedal is actively engaged.
- Starting the machines is as easy as starting a car. It no longer matters if the control levers are extended out or pulled in, as long as the parking brake is engaged. Just turn the key and go.
- Wide-bend, large-diameter steering levers swing out easily for entry and exit from the operator platform.
Brake & Go starting system
Parking brake pedal (Z900R Series)
Parking brake lever (Z900 E and M Series)
The Brake & Go starting system is a John Deere exclusive. This feature makes the starting process on all ZTrak™ mowers easier, while also making it possible to remove two interlock switches from the machine.
The Brake & Go starting procedure helps a novice operator look and feel like a professional. To start the machine, the parking brake must be engaged. It does not matter whether the power take-off (PTO) switch is on or off, nor does it matter if the control levers are pulled in or in the out position.
As long as the parking brake is engaged, the machine will start. When the parking brake is applied, the control levers cannot be moved to the forward or reverse positions.Adjustable levers
Adjustable levers
The motion control levers have two height positions and can also be adjusted forward or rearward within the slotted holes. The levers should be adjusted so the operator can achieve a full range of control operation comfortably.
Tracking adjustment
Tracking adjustment
The easy-to-turn (from-the-seat) tracking adjustment allows operators to keep their mowers straight and produce professional striping results.
Onboard storage and cup holder
Onboard storage
Cup holder
Several storage areas are provided on the ZTrak machines. A convenient cup holder is also available.
Right-hand control panel
Right-hand control panel
Right-hand control panel
The controls are grouped together on the right console, providing one central location for key switch, throttle, PTO engagement, height-of-cut, diagnostics, and hour meter.
- Rocker-type PTO switch
- Height-of-cut knob with transport lock
- Key switch
- Hour meter
- Throttle
- Separate choke control
- Easy choke operation yields less fouling of plugs
- No choke required for the electronic fuel injection (EFI) models
Easy-to-operate height-of-cut adjustment enables on-the-go changes
Mower deck height adjustment knob
An easy-to-use cutting-height lift system allows the operator to adjust the mower deck height with no tools and minimal effort. The easy-to-grip knob allows operators to dial in the desired height of cut (HOC).
Cutting height can be adjusted from approximately 1 in. to 5.5 in. (2.5 cm to 14 cm). Each increment on the knob adjusts the HOC approximately 0.25 in. (0.64 cm). The deck can also be raised and locked in a transport position to provide maximum ground clearance when moving the machine from one area to another.
The transport lock function allows the deck to be returned to the previous HOC after being in the transport position:- Use the foot-lift pedal to lift the deck and engage the transport lock.
- Rotate the knob to adjust from 1 in. to 5.5 in. (2.5 cm to 14 cm) in 0.25-in. (0.64 cm) increments.
This design increases productivity by allowing operators to change the cutting height without having to leave the seat.
-
Mower is easy to service with many accessible components
Z955R EFI left front view
The design of the Z900 Series makes many service components reachable and easily accessible from the ground.
- Large, open engine compartment at the rear of the machine provides convenient servicing and ensures the engine heat is directed away from the operator.
Flip-up foot panel
Flip-up seat
Onboard maintenance chart
Maintenance chart
All ZTrak™ Mowers come with an onboard maintenance chart that is conveniently located inside the right-hand console. The service interval chart gives necessary service intervals.
Diagnostics
Hour meter (M Series pictured)
Diagnostic chart
The hour meter shows the number of hours the machine is run when the key switch is in the on position. It only counts the hours the engine is actually running. Machine diagnostics are the first step of a monitoring system to help operators quickly diagnose common downtime issues. A trouble code light is included on the hour meter.
Use of the hour meter and service interval chart helps determine when the machine will need service.
-
Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Flat-free rear tire shown on ZTrak™ Mower
John Deere provides the commercial mower industry with the Michelin X Tweel Turf technology for Commercial ZTrak Mowers:
- 24x12N12 as an ordering option code for ZTrak Gas Mowers with 54 in., 60 in., and 72 in. (137-cm, 152-cm, and 183-cm) Mower Decks
- 24x12N12 is also available as base code equipment for ZTrak Gas Mowers with 54 in., 60 in., and 72 in. (137-cm, 152-cm, and 183-cm) Mower Decks (ordering information available at Configurator on the Tweel model page)
- 24x12N12 as an ordering option code for ZTrak Z994R Diesel with 54 in., 60 in., and 72 in. (137-cm, 152-cm, and 183 cm) Mower Decks
- 26x12N12 as an ordering option code for Z997R Diesel with 60 in. and 72 in. (152-cm and 183-cm) Mower Decks
Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides an additional advantage to John Deere customers.
Advantages of the Michelin X Tweel Turf include:- Mowing performance is improved.
- Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
- Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires.
- Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
- More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
- Uptime is improved.
- The exclusive technology eliminates downtime and associated cost due to flat or damaged tires.
- Punctures and sidewall damage no longer result in downtime.
- Cost of operation is reduced.
- Cost of repairs and maintenance is reduced. One single unit replaces the current tire, wheel, and valve assembly. There is no need for complex tire-mounting equipment.
- No need to spend time checking and optimizing tire pressure.
- The need to purchase and stock plug kits and spare tires is eliminated, particularly for professional landscape contractors and government agencies who normally stock them.
- The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.
Michelin X Tweel Turf
Michelin X Tweel Turf
Heavy-duty construction provides the ultimate in performance and reliable operation:
- High-strength poly-resin spokes carry the load.
- Four-hole, heavy-duty steel hub for durability.
- Deep, open-tread design provides excellent cleaning and traction.
- Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.
NOTE: In some cases, different size Tweel tires are required depending on the mower deck size.
Tires deliver exceptional traction and maneuverability
Drive tire
Front caster tire
The ZTrak M Series Mowers with 48-in. (122-cm) mower decks come with 24x9.5-12 4 PR drive tires. M Series Mowers with 54-in. (137-cm), 60-in. (152-cm), and 72-in. (183-cm) decks come with 24x12-12 4 PR drive tires. All M Series Mowers are equipped with 13x6.5-6 front flat-free semi-pneumatic caster tires for the following:
- Excellent traction, flotation, and curb climbing
- Low center of gravity to increase hillside mowing capability
- Caster wheels and caster wheel towers with sealed bearings for long life and easy steering
- Offset front caster wheels to help improve the inside corner-trim performance and also reduce between-blade striping
Michelin, X, and Tweel are trademarks of Michelin North America, Inc.
-
Heavy-duty frame provides strength and durability
Z955R EFI model shown with optional X® Tweel® Turf airless radial tire technology
The durability features of the frame are as follows:
-
Heavy-duty, thick-gauge, steel channel mainframe for strength and durability
-
Cast I-beam caster arms to handle the beating and pounding professional mowers receive
-
Wide-open access for maintenance and cleaning
Two-piece rear bumper provides protection
Illustration of ZTrak™ mower rear bumper
A steel rear bumper provides protection for the machine. The bumper is made of two pieces, making it easy to remove and install when using a material collection system (MCS).
A rear hitch can be added to the steel bumper for towing purposes. ZTrak E, M, and R Series Mowers can tow up to 400 lb (181.4 kg).
Michelin, X, and Tweel are trademarks of Michelin North America, Inc. -
-
Protective zone around the operator is provided by the rollover protective structure (ROPS)
Z915E with 60-in. (152-cm) Mower Deck
The spacious operator station has been designed for comfort, visibility, and ease of use:
- Getting on and off is easy with the flat operator platform.
- Convenient-to-use controls located close to the operator are color coded and designed for easy identification and operation.
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
- It reduces the operator’s risk of being crushed under the vehicle should it overturn.
- When used with the seatbelt, the ROPS can reduce the severity of injury in the event of a rollover.
- Use of the seat belt is recommended when operating with ROPS in the upright position.
ROPS in upright position
ROPS in intermediate position
ROPS in down position
Foldable ROPS and retractable seat belt are standard equipment:
- Position adjustment pins provide a good grip and make changing the angle of the ROPS easier.
- The ROPS can be pinned in an intermediate position to accommodate machines equipped with a material collection system.
- Under normal operation, the ROPS should be in the upright position.
- See Operator’s Manual for more information on ROPS.
- Door height of most garages will accommodate the machine with ROPS in the raised position.
- Easy-fold ROPS improves the ability to store the ZTrak™ mower in structures with a lower door opening.
ROPS position Height at top of ROPS Upright 73 in. (185 cm) Down 47 in. (119 cm) -
Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Propane conversion kit on a walk-behind mower
Dual propane conversion kit on a QuikTrak mower
John Deere provides application-specific Environmental Protection Agency (EPA) approved field-installed propane conversion kits for specific John Deere commercial walk-behind mowers, QuikTrak mowers, and ZTrak mowers. The conversion kits include all components required to convert the engines to operate on propane fuel. Single-tank or dual-tank brackets (depending on the vehicle) are provided for securely holding the propane tank(s) to the vehicle.
Propane tanks are not included.
An optional altitude kit is required when operating at altitudes above 2000 ft (610 m). The operator’s manual with the propane conversion kit provides further details. Parts must be ordered separately through John Deere Parts.
Propane facts:
- Propane is flammable and commonly used as a fuel.
- The molecular formula of propane is C3H8, and it is in the family of liquefied petroleum gases (LP gases). The other LP gases include butane, propylene, butadiene, butylene, isobutylene, and mixtures thereof.
- Propane is commonly available and has proven to be a dependable, safe, economical, and clean-burning fuel. It can be used as household fuel, industrial fuel, and fuel for internal combustion engines. Propane has been used as a fuel since 1910.
- At atmospheric pressure, propane boils at -44°F (-42.2°C), meaning it typically exists as a vapor. However, when contained under pressure, such as in a propane cylinder, it can exist as a liquid.
- Propane is naturally odorless, but includes an additive odorant, usually mercaptan, which gives it a distinct odor.
- Vapor propane is heavier than air, meaning it will settle in low areas such as along the ground or in drains.
Advantages of John Deere propane conversion kits include:
- Reduced fuel costs up to 30 percent depending on fuel prices
- Lower emissions
- Reduced fuel-system maintenance
- Maintains John Deere warranty
- EPA and CARB certified
- May qualify for national and state rebate and incentive programs.
Propane tank mounting bracket options:
Single propane tank shown on QuikTrak mower
Dual propane tanks shown on ZTrak mower
Optional tank configurations and sizes are available to provide operators the ability to tailor for run time:
- Commercial walk-behind mowers have only a single-tank mounting option.
- The single-tank bracket is designed for one 20-lb (9.1-kg) Worthington tank.
- Tank is not included.
- The single-tank bracket is designed for one 20-lb (9.1-kg) Worthington tank.
- QuikTrak mowers have single-tank and dual-tank mounting options.
- The single-tank, right-side bracket is designed for one 33-lb (15-kg) Worthington tank.
- Tank is not included.
- The dual-tank brackets are designed for two 20-lb (9.1-kg) Worthington tanks.
- Tanks are not included.
- The single-tank, right-side bracket is designed for one 33-lb (15-kg) Worthington tank.
- ZTrak mowers have single-tank and dual-tank mounting options.
- The single-tank, left-side bracket is designed for one 33-lb (15-kg) or 43-lb (19.5-kg) Worthington tank.
- Tank is not included.
- The dual-tank brackets are designed for two 33-lb (15-kg) Worthington tanks.
- Tanks are not included.
- ZTrak mowers with dual-tank configurations are not compatible with any material collection systems.
NOTE: Reference the Propane and Attachment Compatibility Chart to determine tank configurations that are compatible.
Estimated run-time comparison
Engine displacement FS603cc FS726cc FX726cc FX852cc Average consumption (lb [kg]/hr) 3.9 (1.8) 4.2 (1.9) 4.2 (1.9) 5.8 (2.6) Run time (hours) with 20-lb (9.1-kg) tank 5.1 4.8 4.8 3.4 Run time (hours) with 33.5-lb (15.2-kg) tank Not available 8.0 8.0 5.8 Run time (hours) with 43.5-lb (19.7-kg) tank Not available 10.4 10.4 7.5 Field-installed propane conversion kit compatibility
NOTE: Conversion to propane is not intended for units with engines having more than 250 hours of use.
Commercial walk-behind mowers (model year 2019 and newer)
M Series R Series Model W36M W48M W36R W48R W52R W61R Engine model FS481V FS481V FS481V FS600V FS600V ECV740 EFI Engine displacement 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 36.8 cu in. (603 cc) 45.6 cu in. (747 cc) Propane kit model number Not available Not available FS603cc FS603cc FS603cc Not available QuikTrak mowers
E Series M Series R Series Model 652E 636M 648M 652M 648R 652R 652R EFI 661R 661R EFI Engine model FX691V FS600V FX691V FX691V FX691V FX730V ECV740 EFI FX730V ECV740 EFI Engine displacement 44.3 cu in. (726 cc) 36.8 cu in. (603 cc) 44.3 cu in. (726 cc) 44.3 cu in. (726 cc) 44.3 cu in. (726 cc) 44.3 cu in. (726 cc) 45.6 cu in. (747 cc) 44.3 cu in. (726 cc) 45.6 cu in. (747 cc) Propane kit model number Not available Not available Not available Not available FX726cc FX726cc Not available FX726cc Not available Commercial ZTrak mowers
E Series M Series R Series Model Z915E Z920M Z930M Z945M EFI Z950M Z955M EFI Z960M Z930R Z950R Z955R EFI Z970R Engine model CV742 FX730V FX801V ECV850 EFI FX850V ECV860J EFI FX921V FX801V FX850V ECV860J EFI FX1000V Engine displacement 45.6 cu in. (747 cc) 44.3 cu in. (726 cc) 52 cu in.
(852 cc)50.3 cu in. (824 cc) 52 cu in.
(852 cc)50.3 cu in. (824 cc) 61 cu in.
(999 cc)52 cu in.
(852 cc)52 cu in.
(852 cc)50.3 cu in. (824 cc) 61 cu in.
(999 cc)Propane kit model number Not available FX726cc* FX852cc* Not available FX852cc* Not available Not available FX852cc* FX852cc* Not available Not available *Not compatible with 48-in. (122-cm) mower decks.Worthington tanks are manufactured by Worthington Industries, Inc.
-
Extra reliability and long life with cast-iron blade spindle housings
Cast-iron mower spindle
Cast-iron mower spindle
Extra reliability and long life with cast-iron blade spindle housings:
- Superior impact strength with ductile cast-iron material
- Gusseted design puts reinforcement where it is needed
- Strength of cast iron protects against damage from blade impacts
- Easy access grease fittings are mounted at the top of the spindle shafts for convenience
- Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing
- Chance of deck shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts
- Ability to be reliably rebuilt is provided by use of cast iron
-
Durable hydrostatic drive train that delivers better cooling and provides easy access
Heavy-duty ground drive
The hydrostatic drive features two 13-cc (0.8-cu in.) unitized hydraulic pumps combined with commercial-grade, heavy-duty wheel motors into a single unit.
One pump and one motor drive each wheel on the ZTrak™ E and M Series Mowers. This provides several benefits:- Exceptional cooling in high-load conditions
- Easy-to-check level and refill hydraulic oil
- Opens up access under the seat
-
Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
72-in. (183-cm) 7-Iron PRO deck shown
The ZTrak™ M and R Series Mowers are equipped with either a side-discharge or Mulch On Demand™ 7-Iron PRO deck.
7-Iron PRO mower decks have demonstrated quality, performance, and durability. They deliver a high-quality cut in diverse conditions.
Key features of the 7-Iron PRO mower deck:- Deck is stamped from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside with fewer sharp corners for reduced material buildup.
- Significantly fewer welds on the deck shell to wear or break - it is stamped from a single sheet of steel rather than multiple fabrications. An anti-skid step on the deck provides easy machine mounting.
- Extra reliability and long life with cast-iron blade spindle housings.
- Higher blade tip speed than many competitors - 18,500 fpm (5,639 m/min) for more blade cuts per inch mowed.
- A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently.
- The wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
- Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
- A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
- This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
Mower rectangular leading-edge reinforcement
Dual-captured anti-scalp wheel
- Deck has rectangular leading deck edge reinforcement and the rounded corners of the stamped deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
- Dual-captured front and rear anti-scalp wheels provide deck flotation over even the toughest terrain.
- Three 1-in. (2.5-cm), cold-forged spindles are heat-treated for strength without bulk and are supported by ball bearings, providing reliability and performance; spindle housings are ribbed cast iron providing both excellent strength and heat dissipation.
- The front edge is raised above the blade plane to allow even cutting of tall grass and is reinforced with a square bar for durability. The front baffle has been redesigned to better manage airflow and control clippings.
- Three spindle grease fittings are accessible from the top.
- Blade overlap is 1.6 in. (40.6 mm), nearly 0.79 in. (20 mm) greater than previous decks, to reduce striping between blades.
- Quick-change, cutting-height adjustment.
7-Iron PRO mower deck
M Series R Series Z920M - 48 in. (122 cm), 54 in. (137 cm), 60 in. (152 cm) Z930R - 54 in. (137 cm), 60 in. (152 cm) Z930M - 54 in. (137 cm), 60 in. (152 cm) Z950R - 60 in. (152 cm), 72 in. (183 cm) Z945M EFI - 60 in. (152 cm) Z955R EFI - 60 in. (152 cm) Z950M - 60 in. (152 cm), 72 in. (183 cm) Z970R - 60 in. (152 cm), 72 in. (183 cm) Z955M EFI - 60 in. (152 cm), 72 in. (183 cm) Z960M - 60 in. (152 cm), 72 in. (183 cm) Mower deck step shown on 72-in. (183-cm) mower
The deck step safely aids the operator's entrance and egress from machine.
Blades
Length | Varies by deck size |
Number | Three |
Blade tip speed | Approximately 18,000 fpm 5,486 m/min |
Thickness | 0.25 in. 0.64 cm |
Brakes
Dynamic braking | Twin levers |
Park brake | Internal wet disk integrated in the transmission |
Park brake actuation | Hand brake |
Buyer's note
Warranty | 36 months or 1200 hours, whichever comes first First 24 months, no hour limitation |
Dimensions
Width | With chute down, 74, 86 in. 188, 218 cm |
Height | With ROPS up, 73 in. 185 cm With ROPS down, 47 in. 119 cm |
Length | 84 in. 213 cm |
Weight | 1,275 to1,365 lb 578 to 619 kg |
Drivetrain
Wheel motors | Tuff Torq heavy-duty integrated piston wheel motor |
Speed and direction control | Twin levers |
Filter | Internal, replaceable |
Transmission | Hydrostatic |
Hydraulic capacity | 5.9 U.S. qt 5.6 L |
Travel speed | Speed range 0-10 mph 0-16.1 km/h Forward 0-10 mph 0-16.1 km/h Reverse 0-4.5 mph 0-7.2 km/h |
Electrical system
Charge system | 20 amp |
Battery voltage | 12 V |
Cold cranking amp | 300 amp |
Hour meter | Standard, digital |
Operator presence starting system | Brake-N-Go (hand) |
Engine
Cylinders | Two |
Oil filter | Full flow, replaceable |
Lubrication | Full pressure |
Cooling | Air |
Manufacturer/Model | FX850V |
Power | Gross at 3,600 rpm: 27 hp 20.1 kW |
Air cleaner | Pre-cleaner Yes Heavy-duty canister type with safety element |
Displacement | 52 cu in. 852 cc |
Crankcase capacity | With filter, 2 U.S. qt 1.9 L |
Fuel system
Fuel type | Gasoline |
Fuel tank switch/shut-off valve | Yes |
Fuel tank capacity | 11.5 U.S. gal. 43.5 L |
Fuel consumption | Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr 4.2-7.2 L/hr |
Key Specs
Drive wheels | 24x12-12 |
Caster wheels | 13x6.5-6 |
Engine Manufacturer/model | FX850V |
Transmission | Hydrostatic |
Blade tip speed | Approximately 18,000 fpm 4,486 m/min |
Mower deck Size | 60, 72 in. 152, 183 cm |
Warranty | 36 months or 1200 hours, whichever comes first First 24 months, no hour limitation |
Engine Power | Gross at 3,600 rpm: 27 hp 20.1 kW |
Fuel tank capacity | 11.5 U.S. gal. 43.5 L |
Speed range | 0-10 mph 0-16.1 km/h |
Mower decks
Deck construction | 7-Iron PRO, one-piece stamped steel with reinforcements |
Discharge | Side, MOD |
Cutting width | 60, 72 in. 152, 183 cm |
Height-of-cut range | Increments 0.25 in. 0.64 cm 1-5.5 in. 2.54-14 cm |
Size | 60, 72 in. 152, 183 cm |
Deck thickness | 7 gauge 0.18 in. 4.6 mm |
PTO
Drive | V-belt |
Type | Electro-magnetic, 225 lb-ft 305 Nm |
Tires
Load rating | 4 PR |
Drive wheels | 24x12-12 |
Wheels
Caster wheel type | Flat free |
Front anti-scalp rollers | RH, center, LH |
Rear anti-scalp rollers | Optional |
Caster wheels | 13x6.5-6 |
Additional information
Date collected | 07-Jun-2017 |
4.7
Ztrac 950m
I have owned this fine machine for one year, with zero problems, it is fast and efficient. My mowing time was cut in half, mine has the mulching option, l have a clean yard year round, suspension seat is a blessing along with the twills, Love my “Green Machine “. AG
ANdy51
- From: El DORADO SPRINGS, Mo
- Usage Frequency: Weekly
- Level of Experience: Expert
Will not buy another brand for my company
My lawn care company has tried many brands of commercial mower and I'm happy we a mower that works the best. It's worth the extra money to but the twills with this mower because it makes a big difference on hills and wet turf. Plan on buying another one next week.
HLCH
- From: Burlington, nc
- Usage Frequency: Daily
- Level of Experience: Expert
Collection System and Dealer are Awful
I bought this machine in the summer of 2015, currently have about 600 hours on the machine mowing about 50 residential and commercial properties. I have had a number of problems with the machine. - One half of the deck fell off twice and dealer tried to explain that is how the "Floating deck works" - On my second set of bags and have had to place the majority of plastic parts so far. - Blades will periodically shut off and dealer has no clue what the problem is. - Hopper design leaves the majority off the grass on top of the bags which spill onto the ground when dumping. - Warrantee is not relevant as the dealer will just tell you all parts are wear items. Have had many John Deere commercial mowers from a HD45, a few HD75's, a 727A, 7H19 and the most recent the Z950M, highly unsatisfied with this last machine. Highly recommend testing different brands before purchasing.
JD112
- From: New Hampshire
- Usage Frequency: Daily
- Level of Experience: Expert
Very easy to usE and cuts the job time down.
Good solid piece of equipment. For the price I would not use anything else.
BD1955
- From: South Texas
- Usage Frequency: Weekly
- Level of Experience: Expert
Mows Fast and efficiently
I have 3, the 950 being the largest of my herd. Definitely enjoy the seat, twheels, and speed. Great commercial use machine.
KIRBY18
- From: Hickory NC
- Usage Frequency: Daily
- Level of Experience: Expert
Quality product
I've owned this machine for over 2 years. It has been a very solid mower. I did also experience the issue with the blade shutting down or not engaging. The dealership changed the switch, provided me a loaner and I'm good to go. This has been the absolute only issue with the mower. It starts up and mows well every day. I am a commercial mower, and this thing has really help up. Hydro is very smooth as is the ride on the optional suspension seat. A little more power wouldn't hurt, but it's certainly on par with the competition in this department as well.
RTLC
- From: Illinois, USA
- Usage Frequency: Daily
- Level of Experience: Expert
Solid maChine
We have had a Z950M for over two years and have put a little over 300 hours on it. This machine is a staple in our landscapes/hardscape business. The 27hp Kawasaki motor combined with the 60” 7 iron pro deck is a winning combination. We routinely mow yards that were on old farms so the terrain can be uneven and the grass can grow heavy and thick very quickly. This machine will mow down high grass with ease, it also leave nice stripes ( we later bought a striping kit). When it is damp it leaves minimal to no clumps. I have used a few of the competitors machines and no other deck comes close to the beautiful cut that 7iron leaves. I would strongly suggest the suspension seat if you mow uneven terrain, it ends up being money well spent. You can move at a max speed of 10mph through some reasonable terrain, important when time = money. Overall this machine is very well built and we have been very happy with it, so much so we will buy a second.
Peakside
- From: Upstate, NY
- Usage Frequency: Daily
- Level of Experience: Expert
1st zero turn I bought and love it
i mow just about 5 acers cut about 2 hours off my mowing time only thing i would change is to put a cup holder in a better place. this makes the 6th DEERE we have owned and wouldn't look any where else
m15b
- From: South Bend, IN, USA
- Usage Frequency: Weekly
- Level of Experience: Expert
this product is Awsome
I bought the 950m,72 inch cut 3 years ago,I whanted a machine that was comercial quality and that’s what I got.this machine leaves a golf course looking cut has never let me down,besides replacing blades nothing has gone wrong, this machine is a beast.we cut grass dam near all year here and we needed a machine that was dependable and leaves a great cut and this was the best machine for it ,period.
Hank
- From: Chiefland ,Florida
- Usage Frequency: Weekly
- Level of Experience: Expert
Good to go
2nd season with this beast. No issues. Battery needed a quick charge...no big deal there.
GlobalPlayer
- From: Michigan, USA
- Usage Frequency: Weekly
- Level of Experience: Intermediate
![](https://pape-foursite-stage.s3.amazonaws.com/agriculture.papemachinery.com/a964aeed-956d-4832-98e5-23be55869518.jpg)
