Specifications

3-point hitch

Type Limited Category 1
Lift capacity, 24-in. behind link arms 344 kg
758 lb

Cab

Doors Two
Seat equipment Premium seat
Air conditioning, temperature differential Heat only

Dimensions

Limited slip differential No
Wheelbase 1450 mm
57.1 in.
Turning radius without brakes Outside front tire: 2.51 m
8.2 ft
Approximate shipping weight (open-station; cab) Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Front axle clearance 195 mm
7.7 in.

Electrical

Battery size 500 CCA
Alternator (12-V) 40 amp
Starter size 1.2 kW
1.6 hp

Engine

Engine model 3TNV80F-NCJT
Injection pump type Indirect injection
Type Diesel
Compression ratio 23.1:1
Aspiration Natural
Rated engine speed 3200 rpm
Emissions compliance Final Tier 4
Cylinder liners Cast-in-block
Number of cylinders Three
Air cleaner Dual element with mechanical restriction indicator
Lubrication Pressurized
Cooling system Water pump
Power take-off (PTO) power 12.8 kW
17.2 hp
Fuel tank capacity 24 L
6.3 U.S. gal.
Engine power (gross) SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS
Manufacturer Yanmar®
Bore and stroke 80 x 84 mm
3.15 x 3.31 in.
Engine torque at rated speed 53.1 Nm
39.2 lb-ft
Cylinders/displacement Three cylinders: 1.267 L
77.3 cu in.

Final drive

Differential lock Yes
Type Spur gear

Fluid capacities

Crankcase with filter 2.7 L
2.9 qt
Transmission and hydraulic system 12.3 L
3.2 gal.

Fuel system

Type Indirect injection
Fuel consumption

Hydraulics

Pump type Single gear
Remote control valves available Three
Draft control sensing Position control
Type Open center
Pump rated output Steering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm
Maximum operating pressure 138 bar
2000 psi

Key Specs

Standard transmission; forward/reverse Hydrostatic - two range
Cruise control Standard
Hitch type Limited Category 1
Approximate shipping weight (open-station; cab) Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Wheelbase 1450 mm
57.1 in.
Engine power (gross) SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS
Lift capacity, 24-in. behind link arms 344 kg
758 lb
Power take-off (PTO) power 12.8 kW
17.2 hp
Steering hydraulics 13.2 L/min
3.5 gpm
Implement hydraulics 13.2 L/min
3.5 gpm

Miscellaneous

Toolbox Yes

Operator station

Gear shift location - console/floor Left-hand side
Platform - flat/straddle One-piece semi flat
Rollover protective structure Type
Foldable
Yes

Power take-off (PTO)

Brake (for mid and rear PTO) Wet disk
Clutch Wet disk
Control Independent
Standard Rear: 540 rpm
Mid: 2100 rpm

Tires

Front tread range 931 mm
36.7 in.
Rear R3 Turf: 26x12-12
R4: 26x12-12
Front R3 Turf: 18x8.50-10
R3 Turf Radial: 18x8.50-10
R4: 18x8.5-10
Rear tread spacing 895 mm
35.2 in.

Transmission

Creeper No
Cruise control Standard
Left-hand reverser No
Differential lock Yes
Standard transmission; forward/reverse Hydrostatic - two range
Steering Power
Final drive Spur gear
Brakes Wet disc (left-hand pedal)
Axle capacity Front
612 kg
1349 lb
Rear
715 kg
1576 lb

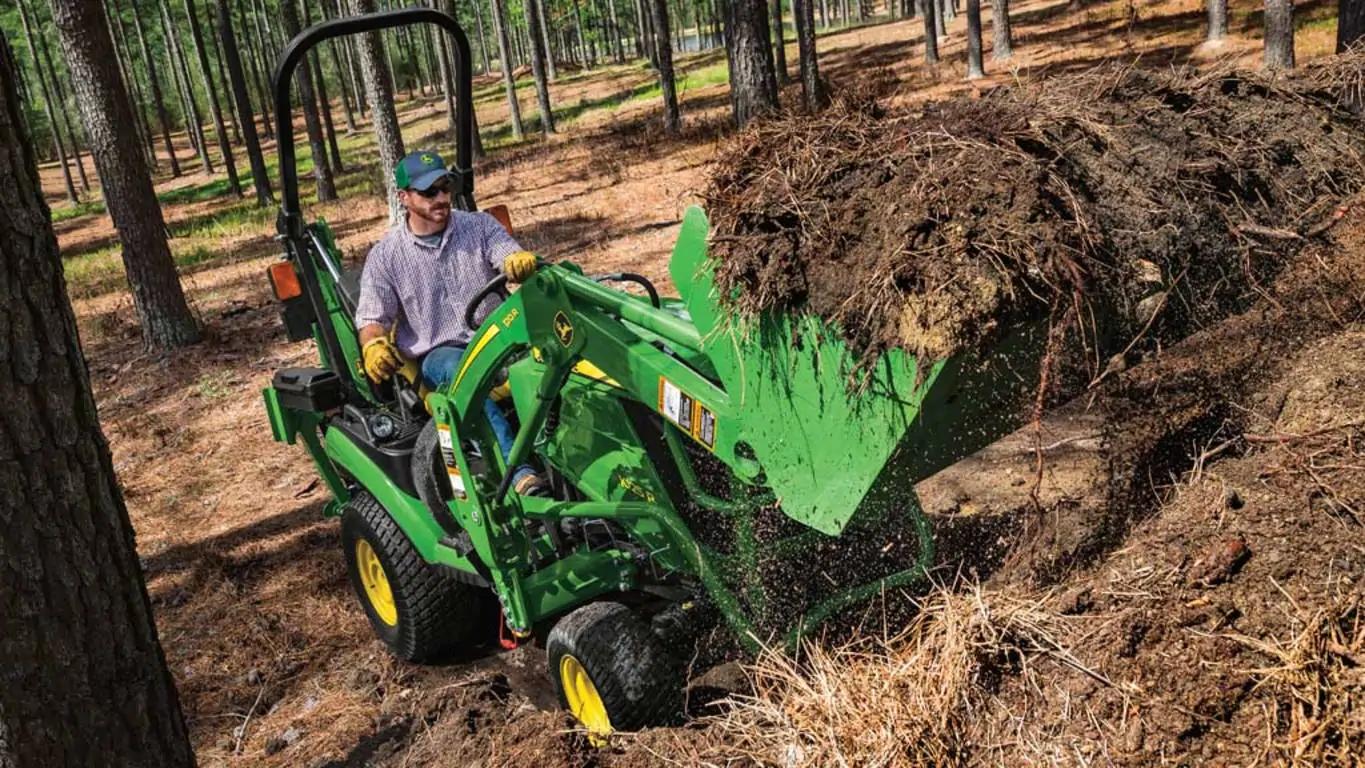

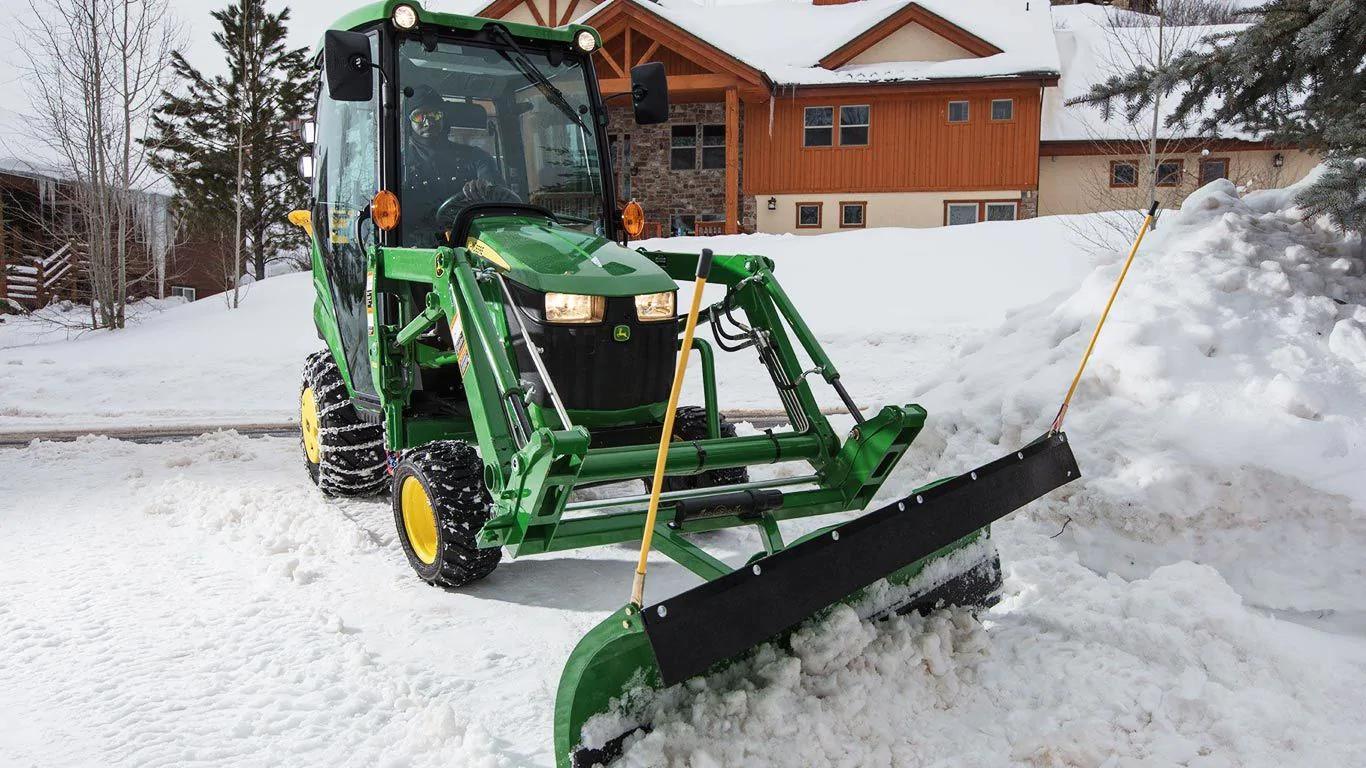

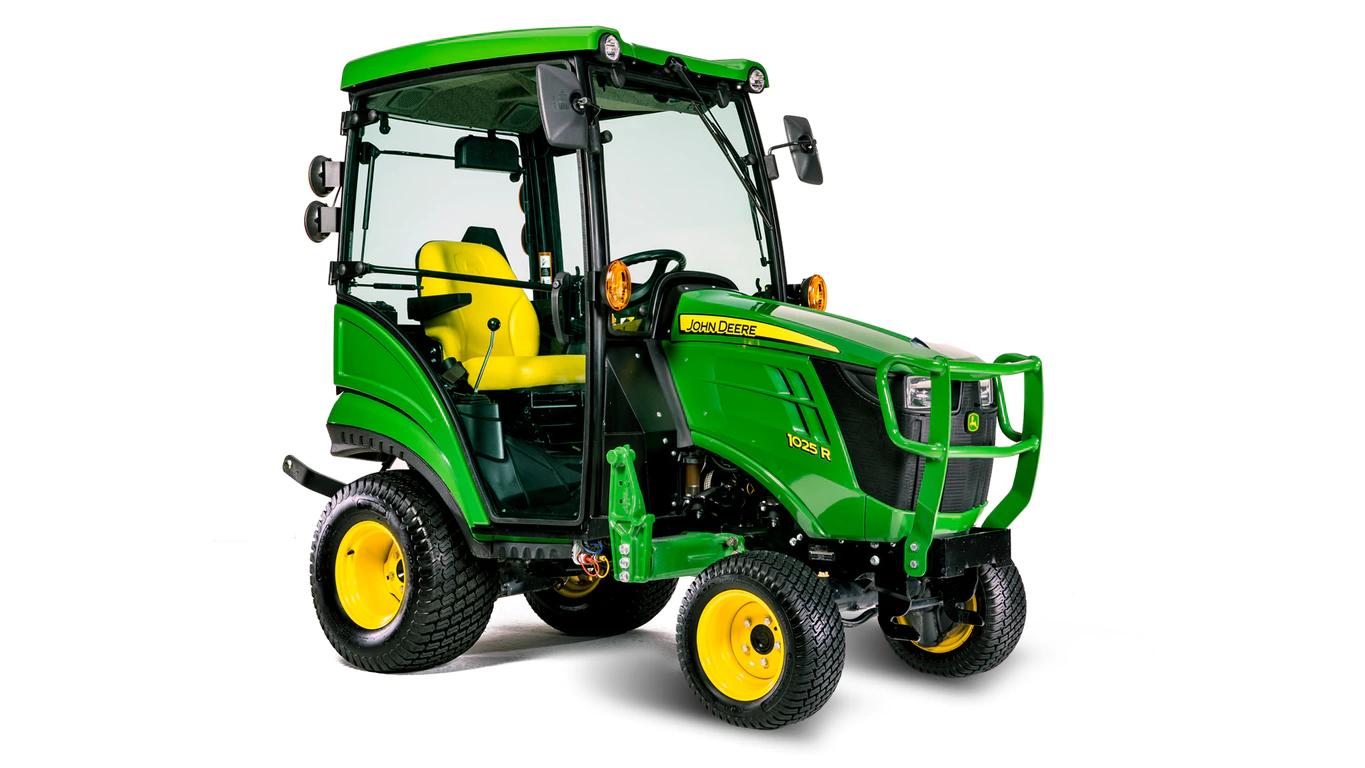

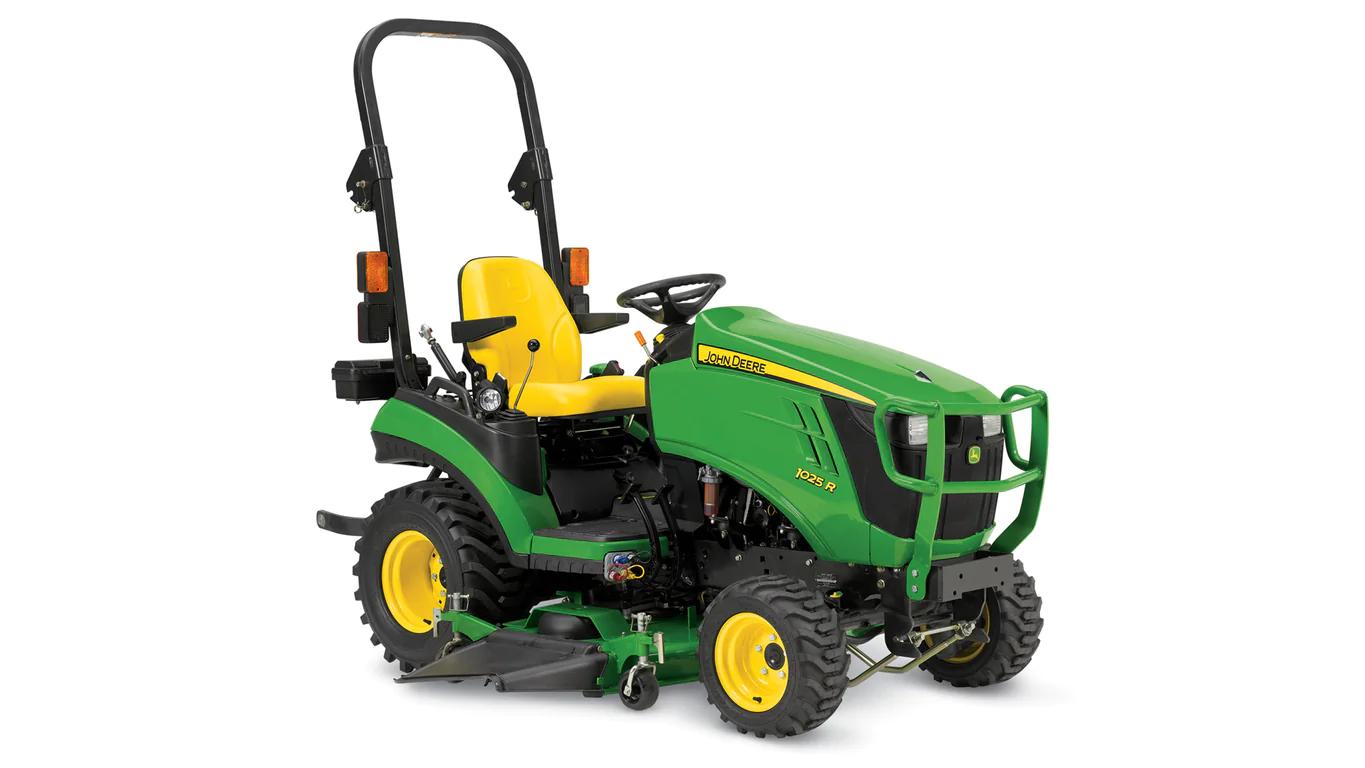

John Deere 1025R Image Gallery
