Specifications

3-point hitch

Type Limited Category 1
Lift capacity, 24-in. behind link arms 344 kg
758 lb

Dimensions

Limited slip differential No
Front axle clearance 195 mm
7.7 in.
Turning radius without brakes Outside front tire: 2.51 m
8.2 ft
Wheelbase 1450 mm
57.1 in.
Approximate shipping weight (open-station; cab) Open station: 656 kg
1446 lb
Cab: Not applicable

Electrical

Alternator (12-V) 40 amp
Battery size 500 CCA
Starter size 1.2 kW
1.6 hp

Engine

Air cleaner Dual element
Lubrication Pressurized
Emissions compliance Final Tier 4
Aspiration Natural
Number of cylinders Three
Compression ratio 23.5:1
Cooling system Water pump
Rated engine speed 3200 rpm
Type Diesel
Engine model 3TNM74F-NCJT
Injection pump type Indirect injection
Cylinder liners Cast-in-block
Cylinders/displacement Three cylinders: 0.993 L
60.6 cu in.
Manufacturer Yanmar®
Fuel tank capacity 24 L
6.3 U.S. gal.
Engine power (gross) SAE J1995 rated power: 16 kW
21.5 hp
21.8 PS
Power take-off (PTO) power 11.1 kW
14.9 hp
Engine torque at rated speed 47.7 Nm
35.2 lb-ft
Bore and stroke 74 x 77 mm
2.91 x 3.03 in.

Final drive

Differential lock Yes
Type Spur gear

Fluid capacities

Crankcase with filter 2.7 L
2.9 qt
Transmission and hydraulic system 12.3 L
3.2 gal.

Fuel system

Type Indirect injection
Fuel consumption

Hydraulics

Type Open center
Draft control sensing Select control
Pump type Single gear
Remote control valves available Three
Pump rated output Steering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm
Maximum operating pressure 138 bar
2000 psi

Key Specs

Cruise control No
Standard transmission; forward/reverse Hydrostatic - two range
Hitch type Limited Category 1
Wheelbase 1450 mm
57.1 in.
Power take-off (PTO) power 11.1 kW
14.9 hp
Approximate shipping weight (open-station; cab) Open station: 656 kg
1446 lb
Cab: Not applicable
Implement hydraulics 13.2 L/min
3.5 gpm
Engine power (gross) SAE J1995 rated power: 16 kW
21.5 hp
21.8 PS
Lift capacity, 24-in. behind link arms 344 kg
758 lb
Steering hydraulics 13.2 L/min
3.5 gpm

Miscellaneous

Toolbox Yes

Operator station

Platform - flat/straddle One-piece semi flat
Gear shift location - console/floor Left-hand side
Rollover protective structure Type
Foldable
Yes

Power take-off (PTO)

Clutch Wet disk
Brake (for mid and rear PTO) Wet disk
Control Independent
Standard Rear: 540 rpm
Mid: 2100 rpm

Tires

Front R3 Turf: 18x8.50-10
R4: 18x8.5-10
Rear R3 Turf: 26x12-12
R4: 26x12-12
Front tread range 931 mm
36.7 in.
Rear tread spacing 895 mm
35.2 in.

Transmission

Standard transmission; forward/reverse Hydrostatic - two range
Final drive Spur gear
Steering Power
Cruise control No
Left-hand reverser No
Creeper No
Brakes Wet disc (left-hand pedal)
Differential lock Yes
Axle capacity Front
612 kg
1349 lb
Rear
715 kg
1576 lb

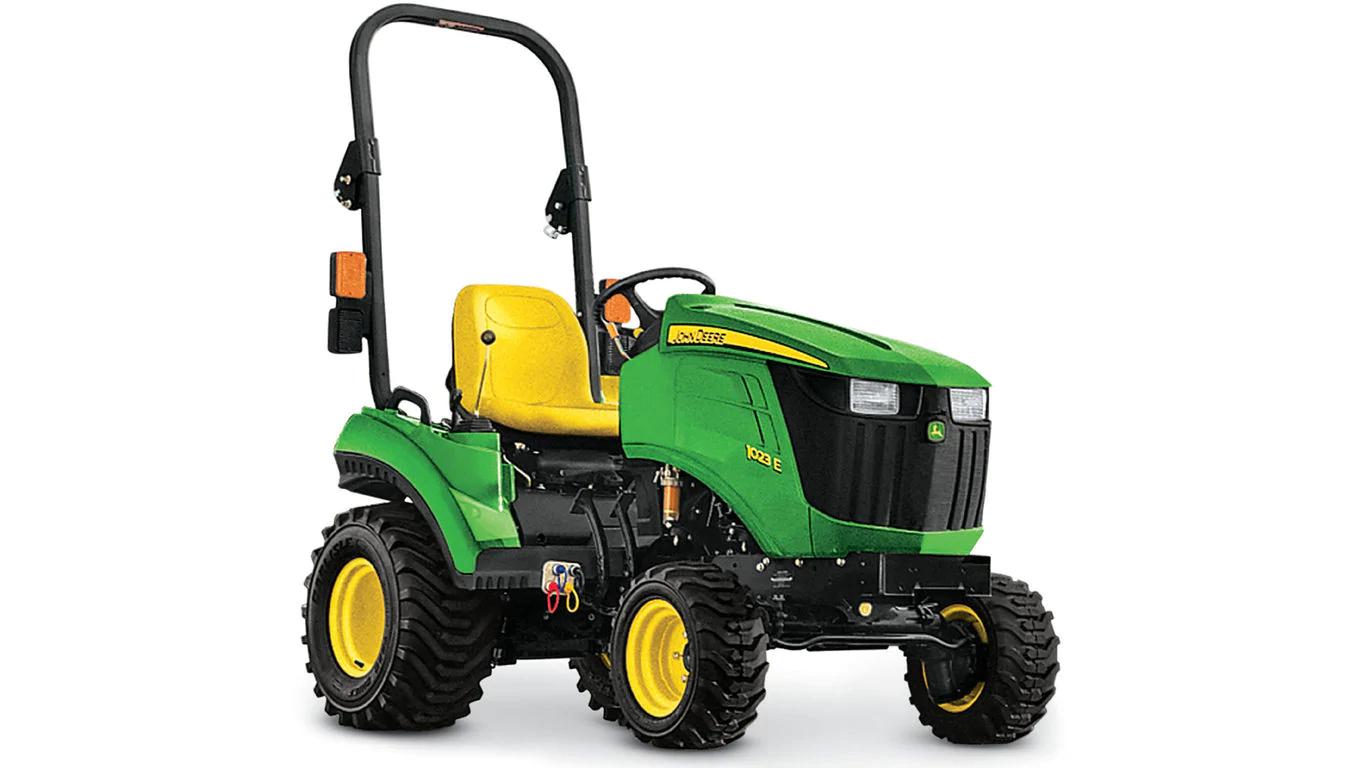

John Deere 1023E Image Gallery
