Specifications

Blades

Length Varies by deck size
Number Three
Blade tip speed Approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm
Thickness 0.25 in.
0.64 cm

Brakes

Dynamic braking Twin levers
Park brake Internal wet disk integrated in the transmission
Park brake actuation Hand brake

Buyer's note

Warranty 36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation

Dimensions

Weight 1,275 to 1,365 lb
578 to 619 kg
Height With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm
Width With chute down, 68, 74 in.
173, 188 cm
Rear discharge, 63.5 in.
161.3 cm
Length 84 in.
213 cm

Drivetrain

Wheel motors Tuff Torq heavy-duty integrated piston wheel motor
Speed and direction control Twin levers
Filter Internal, replaceable
Transmission Hydrostatic
Travel speed Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
0-16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h
Hydraulic capacity 5.9 U.S. qt
5.6 L

Electrical system

Charge system 20 amp
Battery voltage 12 V
Cold cranking amp 300 amp
Hour meter Standard, digital
Operator presence starting system Brake-N-Go (hand)

Engine

Cylinders Two
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Air
Manufacturer/Model FX801V
Air cleaner Pre-cleaner
Yes
Heavy-duty canister type with safety element
Power Gross at 3,600 rpm
25.5 hp
19 kW
Crankcase capacity With filter, 2.4 U.S. qt
2.3 L
Displacement 52 cu in.
852 cc

Fuel system

Fuel type Gasoline
Fuel tank switch/shut-off valve Yes
Fuel consumption Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr
Fuel tank capacity 11.5 U.S. gal.
43.5 L

Key Specs

Mower deck Size 54, 60 in.
137, 152 cm
Drive wheels 24x12-12
Caster wheels 13x6.5-6
Engine Manufacturer/model FX801V
Fuel tank capacity 11.5 U.S. gal.
43.5 L
Warranty 36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Transmission Hydrostatic
Speed range 0-10 mph
0-16.1 km/h
Engine Power Gross at 3,600 rpm
25.5 hp
19 kW
Blade tip speed Approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm

Mower decks

Size 54, 60 in.
137, 152 cm
Discharge Side, Mulch On Demand™ system, rear
Height-of-cut range Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm
Deck thickness 7 gauge
0.18 in.
4.6 mm
Cutting width 54, 60 in.
137, 152 cm

Operation

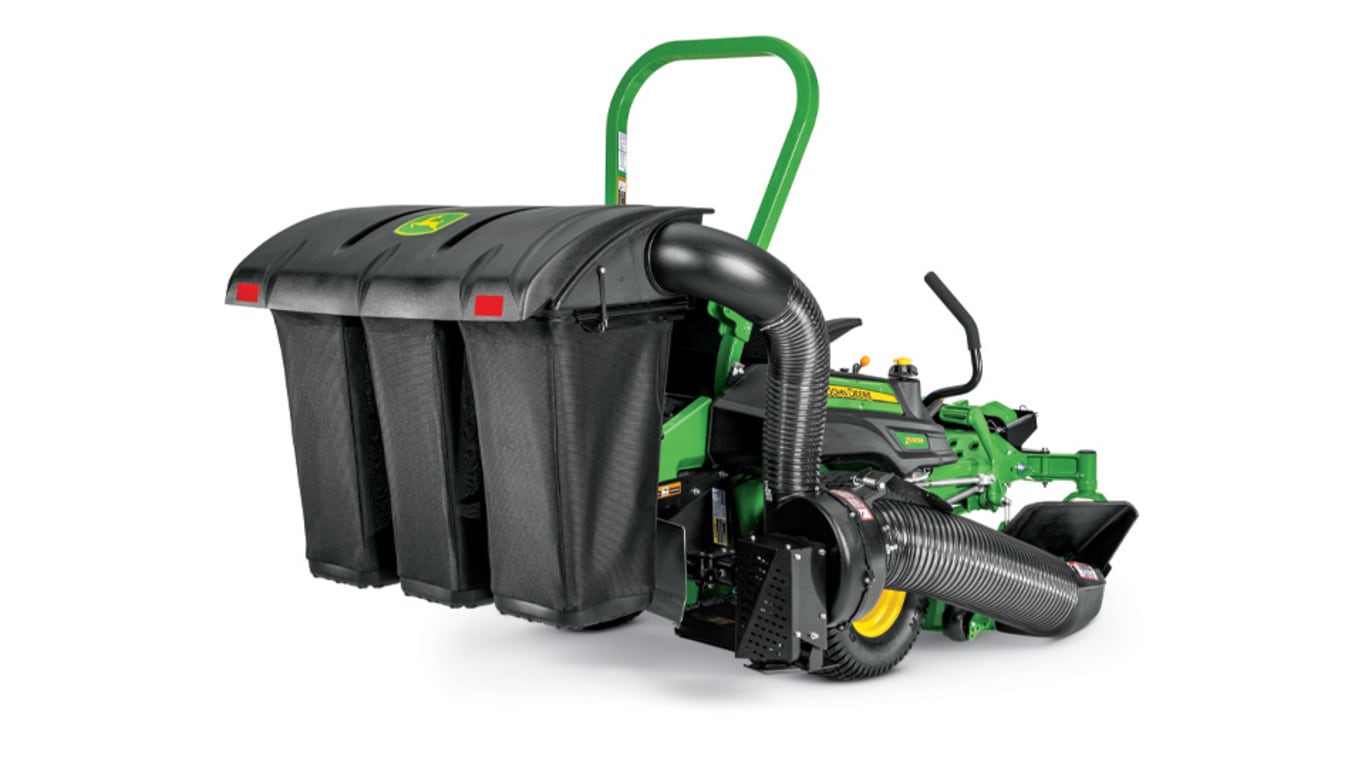

Slope operating limit 20 degrees (10 degrees with material collection system installed)
Rollover protective structure (ROPS) Yes

PTO

Drive V-belt
Type Electro-magnetic, 225 lb-ft
305 Nm

Tires

Load rating 4 PR
Drive wheels 24x12-12

Wheels

Caster wheel type Flat free
Front anti-scalp rollers RH, center, LH
Caster wheels 13x6.5-6
Rear anti-scalp rollers Standard

Additional information

Date collected 1-Sep-2020

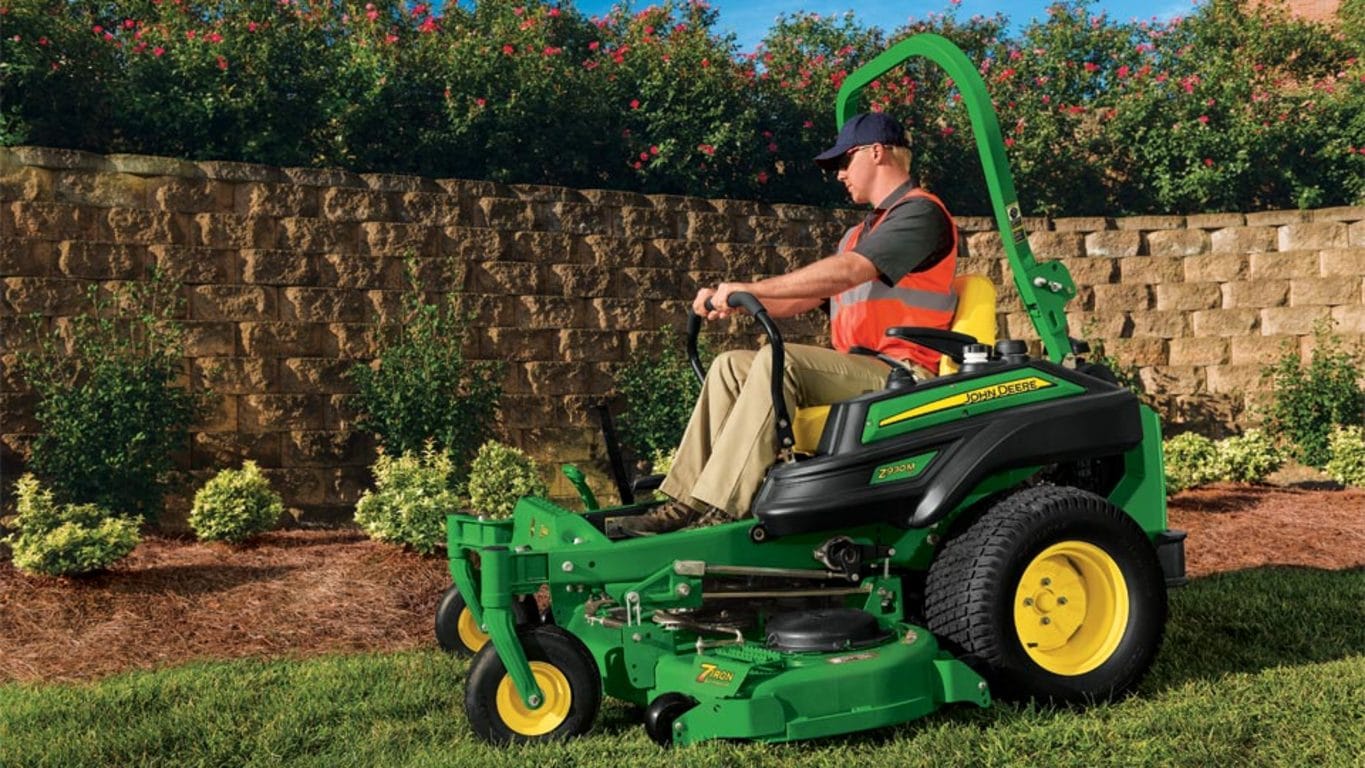

John Deere Z930M Image Gallery
