  • Three-year, bumper-to-bumper warranty
    Z955M ZTrak™ Mower Z955M ZTrak™ Mower
    Z955R ZTrak Mower Z955R ZTrak Mower
    E and M Series 3-year, 1500-hour bumper-to-bumper warranty

    An exclusive 2-year, unlimited hour/3-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard for all John Deere E and M Series Mowers. The warranty is best in its class and places John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

    NOTE: 36 months or 1500 hours, whichever comes first. For the first 24 months, there is no hour limitation.

    R Series 3-year, 1500-hour bumper-to-bumper warranty

    An exclusive 2-year, unlimited hour/3-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard on all John Deere R Series mowers. The warranty is best in the industry and puts John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

    NOTE: 36 months or 1500 hours, whichever comes first. For the first 24 months, there is no hour limitation.

    Mower decks are safety certified
    Z950M ZTrak Mower Z950M ZTrak Mower

    Mowers decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.

  • Heavy-duty frame provides strength and durability
    Z955R EFI model shown with optional X® Tweel® Turf airless radial tire technology Z955R EFI model shown with optional X® Tweel® Turf airless radial tire technology
    #

    The durability features of the frame are as follows:

    • Heavy-duty, thick-gauge, steel channel mainframe for strength and durability
    • Cast I-beam caster arms to handle the beating and pounding professional mowers receive
    • Wide-open access for maintenance and cleaning
    Two-piece rear bumper provides protection
    Illustration of ZTrak™ mower rear bumper Illustration of ZTrak™ mower rear bumper

    A steel rear bumper provides protection for the machine. The bumper is made of two pieces, making it easy to remove and install when using a material collection system (MCS).

    A rear hitch can be added to the steel bumper for towing purposes. ZTrak E, M, and R Series Mowers can tow up to 400 lb (181.4 kg).

    Michelin, X, and Tweel are trademarks of Michelin North America, Inc.

  • Mower is easy to service with many accessible components
    Z955R EFI left front view Z955R EFI left front view

    The design of the Z900 Series makes many service components reachable and easily accessible from the ground.

    • Large, open engine compartment at the rear of the machine provides convenient servicing and ensures the engine heat is directed away from the operator.
    Flip-up foot panel Flip-up foot panel
    Flip-up seat Flip-up seat
    Onboard maintenance chart
    Maintenance chart Maintenance chart

    All ZTrak™ Mowers come with an onboard maintenance chart that is conveniently located inside the right-hand console. The service interval chart gives necessary service intervals.

    Diagnostics
    Hour meter (M Series pictured) Hour meter (M Series pictured)
    Diagnostic chart Diagnostic chart

    The hour meter shows the number of hours the machine is run when the key switch is in the on position. It only counts the hours the engine is actually running. Machine diagnostics are the first step of a monitoring system to help operators quickly diagnose common downtime issues. A trouble code light is included on the hour meter.



    Use of the hour meter and service interval chart helps determine when the machine will need service.

  • Protective zone around the operator is provided by the rollover protective structure (ROPS)

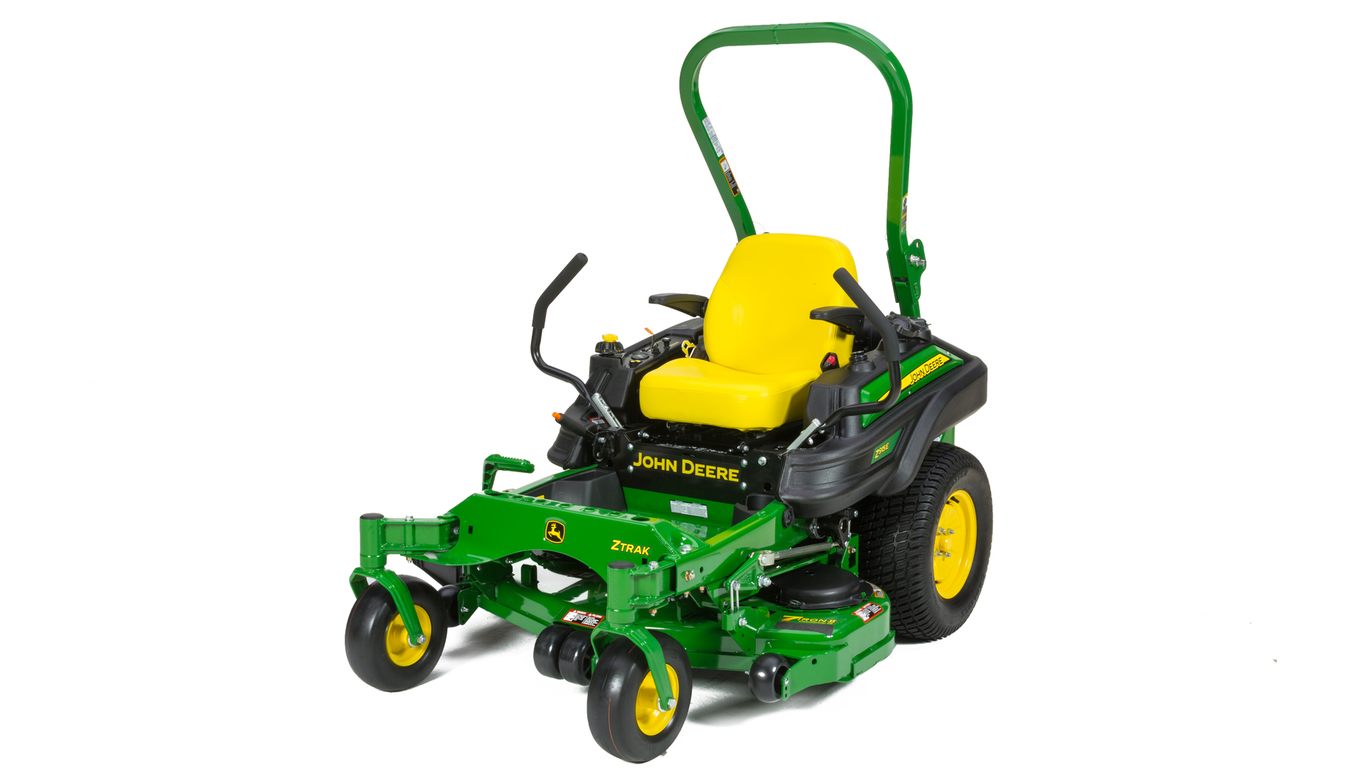

    Z915E with 60-in. (152-cm) Mower Deck Z915E with 60-in. (152-cm) Mower Deck

    The spacious operator station has been designed for comfort, visibility, and ease of use:

    • Getting on and off is easy with the flat operator platform.
    • Convenient-to-use controls located close to the operator are color coded and designed for easy identification and operation.

    The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

    • It reduces the operator’s risk of being crushed under the vehicle should it overturn.
    • When used with the seatbelt, the ROPS can reduce the severity of injury in the event of a rollover.
      • Use of the seat belt is recommended when operating with ROPS in the upright position.
    ROPS in upright position ROPS in upright position
    ROPS in intermediate position ROPS in intermediate position
    ROPS in down position ROPS in down position

    Foldable ROPS and retractable seat belt are standard equipment:

    • Position adjustment pins provide a good grip and make changing the angle of the ROPS easier.
    • The ROPS can be pinned in an intermediate position to accommodate machines equipped with a material collection system.
    • Under normal operation, the ROPS should be in the upright position.
    • See Operator’s Manual for more information on ROPS.
    • Door height of most garages will accommodate the machine with ROPS in the raised position.
      • Easy-fold ROPS improves the ability to store the ZTrak™ mower in structures with a lower door opening.
    ROPS position Height at top of ROPS
    Upright 73 in. (185 cm)
    Down 47 in. (119 cm)
  • Powerful 25.0-hp (18.6-kW) commercial-grade engine delivers class-leading performance and efficiency
    Z915E engine Z915E engine
    #

    The Z915E is powered by an air-cooled, vertical shaft engine:

    • 25.0-hp (18.6-kW) gas engine

    Engine features include:

    • Overhead valve design
      • More horsepower and torque per cubic inch of displacement
      • Fuel efficient design
    • Full-pressure lubrication with full-flow filter
      • Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
      • Oil filter helps keep oil clean for increased engine life
      • V-twin big block design
    • Vertical shaft
    • Easy-access, dual-element air filter with quick-release latch
    • 15-amp alternator
    • Fuel pump
    • Complies with strict Environment Protection Agency (EPA) and California Air Resources Board (CARB) emission standards without loss of horsepower or torque
    • Aluminum block engines
      • Effectively dissipate heat
      • Lightweight and strong construction
      • Extend engine life due to elimination of debilitating engine temperatures
      • Air-cooled engine design
    Air cleaner filters out dust that can damage an engine
    Engine air cleaner Engine air cleaner
    Air cleaner cover removed Air cleaner cover removed

    ZTrak™ Z900 Mowers are equipped with a dual-element, canister-style air filter, easily accessible from the rear of the machine without tools.

    • The filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
    • Filters are extremely easy to change when required.
    • Pre-cleaner provides more protection against contamination in dusty and dirty applications.
    Mow all day on a single tank of fuel with efficient and easy-to-fill fuel tank
    Fuel tank and filler neck Fuel tank and filler neck
    Fuel filler neck Fuel filler neck

    The ZTrak Z900 Mowers are equipped with one single-fill, top-draw fuel tank:

    • 11.5-U.S. gal. (43.5-L) capacity enables operators to mow all day without refueling.
    • The fuel gauge makes it quick and easy to see how much fuel is in the tank.
    • Top draw provides added safety.
    • A large fuel-filler neck is angled to make it easy for an operator to complete the fueling process.

    Under normal conditions, load, and operation, fuel consumption for the Z900 ZTrak Mowers is 1.5 U.S. gph (5.7 L/hr) to 2.2 U.S. gph (8.3 L/hr), depending on the horsepower and conditions.

  • Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
    Flat-free rear tire shown on ZTrak Mower Flat-free rear tire shown on ZTrak Mower

    John Deere provides the commercial mower industry with the Michelin X Tweel Turf technology for Commercial ZTrak Mowers:

    • 24x12N12 as an ordering option code for ZTrak Gas Mowers with 54 in., 60 in., and 72 in. (137-cm, 152-cm, and 183-cm) Mower Decks
      • 24x12N12 is also available as base code equipment for ZTrak Gas Mowers with 54 in., 60 in., and 72 in. (137-cm, 152-cm, and 183-cm) Mower Decks (ordering information available at Configurator on the Tweel model page)
    • 24x12N12 as an ordering option code for ZTrak Z994R Diesel with 54 in., 60 in., and 72 in. (137-cm, 152-cm, and 183 cm) Mower Decks
    • 26x12N12 as an ordering option code for Z997R Diesel with 60 in. and 72 in. (152-cm and 183-cm) Mower Decks

    Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides an additional advantage to John Deere customers.

    Advantages of the Michelin X Tweel Turf include:

    • Mowing performance is improved.
      • Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
      • Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires.
      • Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
      • More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
    • Uptime is improved.
      • The exclusive technology eliminates downtime and associated cost due to flat or damaged tires.
      • Punctures and sidewall damage no longer result in downtime.
    • Cost of operation is reduced.
      • Cost of repairs and maintenance is reduced. One single unit replaces the current tire, wheel, and valve assembly. There is no need for complex tire-mounting equipment.
      • No need to spend time checking and optimizing tire pressure.
      • The need to purchase and stock plug kits and spare tires is eliminated, particularly for professional landscape contractors and government agencies who normally stock them.
      • The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.
    Michelin X Tweel Turf Michelin X Tweel Turf
    Michelin X Tweel Turf Michelin X Tweel Turf

    Heavy-duty construction provides the ultimate in performance and reliable operation:

    • High-strength poly-resin spokes carry the load.
    • Four-hole, heavy-duty steel hub for durability.
    • Deep, open-tread design provides excellent cleaning and traction.
    • Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.

    NOTE: In some cases, different size Tweel tires are required depending on the mower deck size.

    Tires deliver exceptional traction and maneuverability
    Drive tire Drive tire
    Front caster tire Front caster tire

    The ZTrak E Series Mowers with 48-in. (122-cm) mower decks come with 24x9.5-12 4 PR drive tires. E Series Mowers with 54-in. (137-cm) and 60-in. (152-cm) decks come with 24x12-12 4 PR drive tires. All E Series Mowers are equipped with 13x6.5-6 front pneumatic caster tires for the following:

    • Excellent traction, flotation, and curb climbing
    • Low center of gravity to increase hillside mowing capability
    • Caster wheels and caster wheel towers with sealed bearings for long life and easy steering
    • Offset front caster wheels to help improve the inside corner-trim performance and reduce between-blade striping

    Michelin, X, and Tweel are trademarks of Michelin North America, Inc.

  • Spindle assembly provides greater performance and reliability
    Spindle assembly Spindle assembly

    On every John Deere ZTrak™ mower deck, there are three 1-in. (2.5-cm) spindles that are cold-forged and heat-treated for strength without bulk. The spindles are supported by precision ball bearings, providing great performance and reliability.

    The spindle housing is made of aircraft-grade, ribbed cast aluminum on 48-in., 54-in., and 60-in. (122-cm, 137-cm, and 152-cm) decks, including Mulch On Demand™ configurations. This unique casting design embosses reinforcing gussets in the housing, which adds both strength and cooling surface area that stands up to commercial applications.

    These spindles can be greased from the top and require no disassembly to reach. Grease channels provide lubrication to both bearings.

  • Extra durability and mowing performance from 7-Iron™ II Side-Discharge decks pressed from a single piece of steel
    60-in. (152-cm) mower deck shown on Z915E 60-in. (152-cm) mower deck shown on Z915E
    48-in. (122-cm) mower deck shown on Z915E 48-in. (122-cm) mower deck shown on Z915E

    The ZTrak™ E Series Mowers are equipped with a side-discharge, 7-Iron II mower deck.

    7-Iron II mower decks have demonstrated quality, performance, and durability. They deliver a high-quality cut in diverse conditions.

    Key features of the 7-Iron II mower deck:

    • Deck is stamped from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
      • This design minimizes the number of welds on the deck shell itself.
    • There is an anti-skid pad on the top corner of the trim side of the deck.
    • High blade tip speed - 18,500 fpm (5,638.8 m/min) for more blade cuts per inch mowed.
    • A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently.
    • The wide and high discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
    Mower leading-edge reinforcement Mower leading-edge reinforcement
    Double captured anti-scalp wheel (optional belt cover ring clip shown) Double captured anti-scalp wheel (optional belt cover ring clip shown)
    • Deck has rectangular leading deck edge reinforcement, and the rounded corners of the stamped deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
    • Dual-captured anti-scalp wheels on the front of the deck provide flotation over even the toughest terrain.
    • Three 1-in. (2.54-cm) cold-forged spindles are heat-treated for strength without bulk and are supported by ball bearings, providing reliability and performance; spindle housings are ribbed cast aluminum, providing both excellent strength and heat dissipation.
    • The front edge is raised above the blade plane to allow even cutting of tall grass and is reinforced with a square bar for durability. The front baffle has been designed to better manage airflow and control clippings.
    • Grease fittings on each of the three spindles are accessible from the top.
    • Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
      • A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
      • This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
    • Blade overlap is 1.6 in. (40.6 mm) to reduce striping between blades.
    • Quick-change cutting-height adjustment is available.
    7-Iron II mower deck

    The Z915E is available with a choice of mower decks:

    • 48 in. (122 cm)
    • 54 in. (137 cm)
    • 60 in. (152 cm)

    The Z915E uses a vertical-shaft engine. The power take-off (PTO) clutch is located on the bottom of the engine with the belt extending from the clutch to the mower deck, which is turned on and off by an electromagnetic clutch.

  • Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort

    There are two seating options available for the E Series, both of which are factory installed:

    1. Deluxe comfort seat with armrests
    2. Deluxe comfort seat with armrests and isolation
    ComfortGlide fore/aft suspension
    ComfortGlide fore/aft suspension control lever ComfortGlide fore/aft suspension control lever

    Each seat has the ComfortGlide fore/aft suspension system that gives superior ride comfort over uneven areas:

    • Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort.
    • Control lever provides the ability to easily lock out fore/aft suspension movement if desired.
    • One lever has three functions:
      • Slide seat forward and back 3 in. (10.2 cm) to allow the operator the ability to choose the leg room needed
      • Activate ComfortGlide fore/aft seat suspension
      • Lock out ComfortGlide fore/aft seat suspension
    Deluxe comfort seat with armrests
    Deluxe comfort seat with armrests Deluxe comfort seat with armrests

    The deluxe comfort seat with armrests is standard on all E and M Series models:

    • Rubber springs are provided to increase ride comfort.
    • A convenient seat latch makes it easy to lift the seat.
    • The seat is factory installed.
    Deluxe comfort seat with armrests and isolation
    Deluxe comfort seat with armrests and isolation Deluxe comfort seat with armrests and isolation
    Rubber isolation mount Rubber isolation mount

    The deluxe comfort seat with armrests and isolation is available on the E, M, and R Series:

    • Rubber springs are provided to isolate the seat base and to increase ride comfort.
    • A convenient seat latch makes it easy to lift the seat.
    • Isolation mounting is a good feature to reduce vibration.
    • On Z900s ordered with the deluxe comfort seat with armrests and isolation option, it is factory installed.
    Designed for operator comfort
    Operator station Operator station

    Two-lever hydrostatic control provides the following:

    • The operator can select the ground speed and direction control simply by moving levers forward or reverse.
    • Positive neutral lock position for levers provides added safety.
    • Brake & Go operator-presence system returns levers to the neutral position when the brake pedal is actively engaged.
    • Starting the machines are as easy as starting a car. It no longer matters if the control levers are extended out or pulled in, as long as the parking brake is engaged. Just turn the key and go.
    • Wide-bend, large-diameter steering levers swing out easily for entry and exit from the operator platform.
    Brake & Go starting system
    Parking brake pedal (Z900R Series) Parking brake pedal (Z900R Series)
    Parking brake lever (Z900 E and M Series) Parking brake lever (Z900 E and M Series)

    The Brake & Go starting system is a John Deere exclusive. This feature makes the starting process on all ZTrak™ mowers easier, while also making it possible to remove two interlock switches from the machine.

    The Brake & Go starting procedure helps a novice operator look and feel like a professional. To start the machine, the parking brake must be engaged. It does not matter whether the power take-off (PTO) switch is on or off, nor does it matter if the control levers are pulled in or in the out position.

    As long as the parking brake is engaged, the machine will start. When the parking brake is applied, the control levers cannot be moved to the forward or reverse positions.

    Adjustable levers
    Adjustable levers Adjustable levers

    The motion control levers have two height positions and can also be adjusted forward or rearward within the slotted holes. The levers should be adjusted so the operator can achieve a full range of control operation comfortably.

    Tracking adjustment
    Tracking adjustment Tracking adjustment

    The easy-to-turn (from-the-seat) tracking adjustment allows operators to keep their mowers straight and produce professional striping results.

    Onboard storage and cup holder
    Onboard storage Onboard storage
    Cup holder Cup holder

    Several storage areas are provided on the ZTrak machines. A convenient cup holder is also available.

    Right-hand control panel
    Right-hand control panel Right-hand control panel
    Right-hand control panel Right-hand control panel

    The controls are grouped together on the right console, providing one central location for key switch, throttle, PTO engagement, height-of-cut, diagnostics, and hour meter.

    • Rocker-type PTO switch
    • Height-of-cut knob with transport lock
    • Key switch
    • Hour meter
    • Throttle
    • Separate choke control
      • Easy choke operation yields less fouling of plugs
    Easy-to-operate height-of-cut adjustment enables on-the-go changes
    Mower deck height adjustment knob Mower deck height adjustment knob

    An easy-to-use cutting-height lift system allows the operator to adjust the mower deck height with no tools and minimal effort. The easy-to-grip knob allows operators to dial in the desired height of cut (HOC).

    Cutting height can be adjusted from approximately 1 in. to 5.5 in. (2.5 cm to 14 cm). Each increment on the knob adjusts the HOC approximately 0.25 in. (0.64 cm). The deck can also be raised and locked in a transport position to provide maximum ground clearance when moving the machine from one area to another.

    The transport lock function allows the deck to be returned to the previous HOC after being in the transport position:

    • Use the foot-lift pedal to lift the deck and engage the transport lock.
    • Rotate the knob to adjust from 1 in. to 5.5 in. (2.5 cm to 14 cm) in 0.25-in. (0.64 cm) increments.

    This design increases productivity by allowing operators to change the cutting height without having to leave the seat.

  • Durable hydrostatic drive train that delivers better cooling and provides easy access
    Heavy-duty ground drive Heavy-duty ground drive

    The hydrostatic drive features two 13-cc (0.8-cu in.) unitized hydraulic pumps combined with commercial-grade, heavy-duty wheel motors into a single unit.

    One pump and one motor drive each wheel on the ZTrak™ E and M Series Mowers. This provides several benefits:

    • Exceptional cooling in high-load conditions
    • Easy-to-check level and refill hydraulic oil
    • Opens up access under the seat

Blades

Length Varies by deck size
Number Three
Blade tip speed Approximately 18,000 fpm
Thickness 0.25 in.
0.64 cm

4.44

16 Reviews
4.38
4.56
4.88
Oct 05, 2020

Tough! Looks Good & works great!

5/5

I'm writing this view because I see so many saying that it's a "bad ride"...I have to disagree completely! I work in professional landscaping & use the Z930M 60" deck & the Z960 with the 72" deck ---both of those mowers had the fully adjustable suspension seat. For my personal use here at home...which is still about 11 acres--I bought the Z915E...and personally, I think the Z915E is the best ride! The other 2 tend to "bounce" me up in the air which as you know, will turn the blades off. I think it depends on the size of the operator. I am a 5'2" female weighing close to 130 pounds. I have the adjustment on the 930 & 960 at the lowest weight setting & it still just feels like I'm floating. IF I increase the weight adjustment...well, I'm flying off the seat with each bump. With the 915...I feel more like I'm laid back in my SS. I know there are issues with some having rider fatigue...but I've mowed days straight from early to dark with all of the 3 I've mentioned...and I still have to say for the ride...I like the 915 best. So, just wanted to point that out...if you're a large operator...maybe it makes a difference...if you're not...this is the best ride! If you're comparing mowing capabilities...I have the 60" deck on my 915 & 930 & I don't see ANY difference in operations at all (other than the seat)...the 960 with the 72" deck...mows faster, of course...BUT it lacks the ability for detailing. I use the 960 on those huge open spaces & the 930 or 915 for areas where I'll be going around a lot of trees, flowers, etc...as I think it provides a better detail & the smaller stripe looks best in smaller sized yards. I've mowed both commercial & residential yards...the 930 & 915 seems to be best on residential properties where the 960 works best on commercial properties...ALL 3 are GREAT in quality & performance & it just really comes back to price & the ride...which again...for my home use...the 915 won!

Kare

  • From: North Carolina
  • Usage Frequency: Weekly
  • Level of Experience: Expert
4
5
5
Sep 12, 2019

915e Why did I wait so long?

5/5

I just purchased a 915e from my local John Deere dealer. This is the first zero turn I have owned. I have always used JD riding mowers. While it does take some getting used with the zero turn, mowing time was so much quicker. I asked myself why I have waited so long. The quality of construction is very good. JD has a sale on these 915's and I couldn't pass it up. This mower will last me a long time!

Robbie19

  • From: VA
  • Usage Frequency: Weekly
  • Level of Experience: Beginner
5
5
5
Aug 08, 2018

Love this product

5/5

Purchased a week ago and couldn't believe the overall quality of this product. Its as if your driving a mini tank compared to other brands I demoed and not to mention the pristine cut.

Mackatack

  • From: Maryland, USA
  • Usage Frequency: Weekly
  • Level of Experience: Intermediate
5
5
4
Mar 02, 2019

Best mower ever

5/5

Traded my garden tractor GX 345 in for a zero turn 915 E best choice ever cuts excellent ride very smooth and the Tweel tires best thing Deere could add durability its a tank last mower I will ever buy cuts my grass time in half Thanks Deere

JimV57

  • From: PLAINFIELD ILLINOIS
  • Usage Frequency: Weekly
  • Level of Experience: Expert
5
5
5
Jul 11, 2019

awesome

5/5

First zero turn I have ever owned and I have to say i will never go back to a regular lawn tractor. This is definitely the best mower I have ever owned, the price and quality are worth it. I would recommend this mower to anyone, it cuts my lawn like a beast. I actually enjoy mowing again!!!

newgreenguy

  • From: Minnesota
  • Usage Frequency: Weekly
  • Level of Experience: Intermediate
5
5
5
