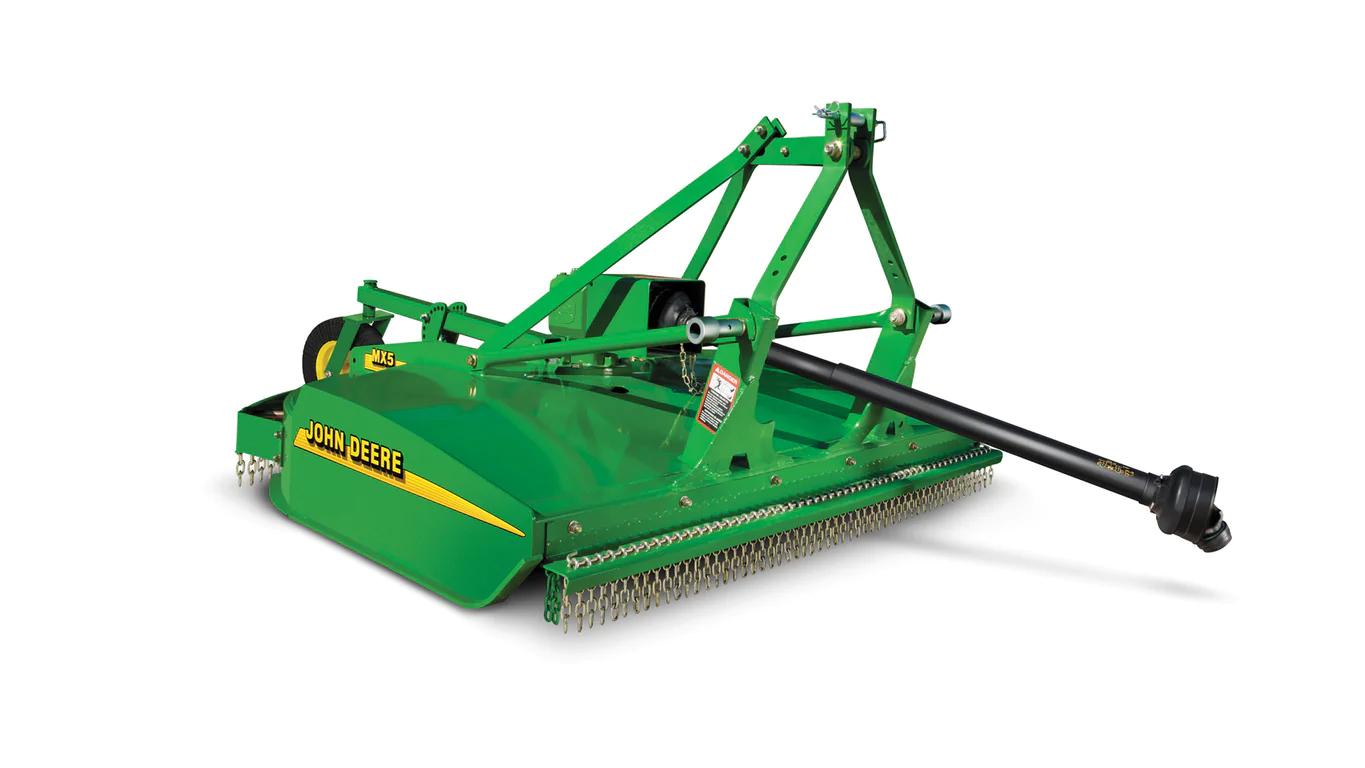

John Deere MX5
  • + Expand All
  • - Close All
  • What is the best cutter for your job?

    NOTE: Only for single spindle and multi-spindle.



    John Deere rotary cutters lead the way with innovative design, superior performance, and proven durability. Valuable features such as the Double-Decker™ design and Max Flow cutting chamber prevent water and debris from accumulating on the smooth, dome-shaped top deck while the flat bottom deck absorbs the punishment from rocks and stumps.



    The top deck stays smooth - no dents, no dings, no holes. The internal supports sandwiched between the top and bottom decks are key to the smooth and structure-free Max Flow cutting chamber, while at the same time provide added strength and durability.



    To help promote safe operation, John Deere rotary cutters are equipped with front and rear safety-chain shields. John Deere rotary cutters continue to advance in value with powerful gearboxes, blade holders, and compatibility with a wide range of tractors.



    Here are situations when a rotary cutter provides value:

    • Clipping pastures encourages grass growth, optimizing valuable pasture acreage.
    • Cutting grass and stalks helps control insects.
    • Routine cutting keeps weeds from reseeding.
    • It is the most cost efficient way to cut roadsides, parks, cemeteries, airport fields, hydro, gas, and telephone easements, and all other types of open properties.
    • Cutting grass waterways encourages root development and helps prevent erosion.
    • Knocking down stalks such as cotton, corn, or milo speeds up decomposition. This is essential in no-till and minimum-till fields.
    • Clearing out brush.
    • Control undergrowth and grass in orchards, vineyards, and groves.

    Decide what model to use based on:

    • The size of the area to mow versus the size of the machine – the bigger the area to mow, the bigger the mower needs to be in order to be efficient during mowing hours. Similarly, the limitation of a small area will guide operators to use a smaller mower.
    • The amount of time and frequency it will be used – for longer hours and more frequency, choose a heavier duty machine.
    • Tractor compatibility – if there is a tractor the operator will be using, look for the tractor compatibility sheet to identify appropriate options.

    John Deere rotary cutters are available in two duty-level categories:

    • Mid-duty
      • MX models are available in 1.5-m (5-ft), 1.8-m (6-ft), 2.1-m (7-ft), 2.5-m (8-ft), and 3.2-m (10-ft).
      • This duty-level category cuts brush up to 50.8 mm (2 in.) in diameter.
    • Heavy-duty
      • HX models are available in 3.2-m (10-ft) and 4.2-m (14-ft).
      • This duty-level category cuts brush up to 76.2 mm (3 in.) in diameter.
      • HX6 is available in 1.8-m (6-ft) and the HX7 is available in 2.1-m (7-ft) cut widths; they cut brush up to 101.6 mm (4 in.) in diameter.

    NOTE: HX models are heavier built to cut at a 101.6 mm (4 in.) capacity level more frequently and for longer durations.

  • Warranty
    Five-year limited gearbox warranty provided on every John Deere rotary cutter
    Five-year warranty on all flex-wing gearboxes
    Five-year warranty on all flex-wing gearboxes
    Five-year warranty on all rotary cutter gearboxes
    Five-year warranty on all rotary cutter gearboxes

    John Deere is so confident in the reliability of the gearbox that rotary cutters come with a 5-year limited gearbox warranty.



    There is also 1-year warranty on the complete machine, as well as drivelines and other components.

  • Standard suction blades provide additional blade lift
    Suction blade (standard equipment)
    Suction blade (standard equipment)

    Suction blades provide additional lift action for picking up downed material. The blades are 1.3 cm x 10.2 cm (0.5 in. x 4 in.) in size and heat-treated for long wear life.



    The fast blade-tip speed ensures clean cutting and fine shredding of material.

    • Up to 88.5 m/sec (17416 fpm)
  • Front and rear safety chain shields are standard
    Front safety chains (MX6 shown)
    Front safety chains (MX6 shown)
    Rear safety chains (MX6 shown)
    Rear safety chains (MX6 shown)

    Front and rear chain shields are standard equipment:

    • Offer protection for the operator yet allow uncut material to pass into the cutting chamber with minimal restriction

Blades

Type Suction
Material flow system Max flow
Thickness 13 mm
0.5 in.
Blade tip speed 540 RPM
4,304 m/min
14,121 fpm
258 km/h
160 mph
Width 102 mm
4 in.
Holder Type
Round stump jumper

5.0

1 Review
5.0
5.0
5.0
Jun 06, 2017

Mows as smooth as a finish mower

5/5

Was going to buy a bush hog and a finishing mower but this MX5 cuts so good think I'll pass on the finishing mower.Well built machine,worth the extra money.

tndeere

  • From: Tennessee, USA
  • Usage Frequency: Weekly
  • Level of Experience: Intermediate
Yes, I would reccomend this product
