John Deere HD40R
  • + Expand All
  • - Close All
  • Follow the ground to capture more crop

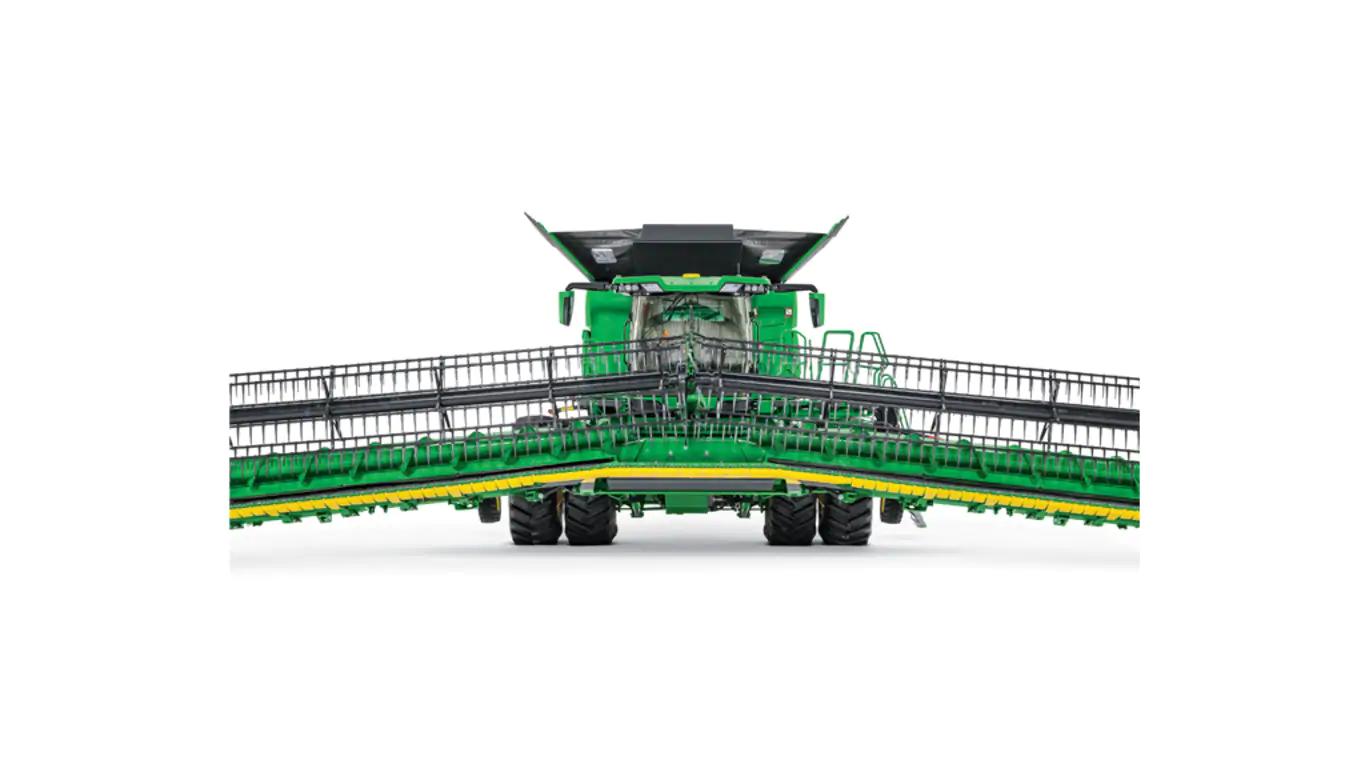

    X Series Combine with 15.2-m (50-ft) draper X Series Combine with 15.2-m (50-ft) draper

    The John Deere HDR Draper will follow your ground by pivoting, gliding, and flexing over uneven fields to provide the most accurate cut possible.

    • Capture more crop by adjusting to the ground – This hinged frame draper provides double the wing range of the MacDon® FD1 Draper. Industry-exclusive hydraulic suspension isolates the header from the combine, allowing it to float over the field for a more consistent stubble height. As the header approaches the extremes of the suspension system’s range of motion, active feederhouse position control automatically adjusts the feederhouse height to position itself in the middle of the attachment frame, enabling more float range in changing field conditions.
    • Harvest in difficult crop conditions – Capture downed crop with the push of a button on the CommandARM™ console to automatically raise up the gauge wheels and extend your reel out and down. Harvest the toughest lodged crop with confidence with a 24 percent increase in reel torque (compared to the 700FD).
    • Keep a clean cutterbar no matter the field or crop – A more consistent distance between the reel fingers and cutterbar (compared to the MacDon FD145) ensures crop is cleanly swept across the cutterbar and evenly fed into the combine throughout the full wing range.
    • Improve the consistency of stubble height by 25 percent compared to the MacDon FD1 in challenging terrain conditions – Achieve consistent stubble height behind the combine – an advantage for better seeding performance in no-till applications. Compared to the competition, operators no longer must leave the cab to set the cut height with John Deere height control gauge wheels. The draper automatically maintains the desired cut height while floating over the land.

    This draper hinges independently from the feederhouse to meet the lay of the land. The result is an accurate cut that picks up more crop than others, moving it into the feederhouse in an even, uniform feeding, while leaving consistent stubble height in the field.

    MacDon is a trademark of MacDon Industries Ltd.

  • Harvest more acres per day with the 15.2-m (50-ft) draper
    X Series Combine with 15.2-m (50-ft) draper X Series Combine with 15.2-m (50-ft) draper

    Harvest acres faster than ever before with a 15.2-m (50-ft) hinged draper built off the proven foundation of the 700D and 700FD Drapers.

    • Harvest over 12.14 ha (30 acres) an hour or -129.5 ha (320 acres) a day of wheat and soybeans with one HD50R and X9 1100 Combine – When in canola, you can expect to harvest 10.1 ha (25 acres) an hour.
    • Harvest up to 13.35 ha (33 acres) more per day with a John Deere 15.2-m (50-ft) hinged draper – Go across the field fewer times and cover up to an additional 13.35 ha (33 acres) every day compared to similar 13.7-m (45-ft) models at the same ground speed.
    • Handle green stems or late-night conditions without sacrificing cut quality – When crops are tough late in the night, harvest with confidence knowing the 10.2-cm (4-in.) double-cut knife system will maintain cut quality.

    Shorten your harvest by taking full advantage of the X Series Combines’ excellent feeding capacity with this hinged draper. This can be the difference between getting the crop out of the field at the ideal time or not. Do so confidently knowing the cutterbar is far less likely to stall compared to the cutterbar system used by competitors, allowing you to enter crop head on without any hesitation.

  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • All-day performance in all crops and conditions
    X Series Combine with 15.2-m (50-ft) draper X Series Combine with 15.2-m (50-ft) draper

    The goals for a successful harvest are simple – harvest on time and put more grain in the tank. The John Deere HDR Draper is designed to not only harvest more bushels per hour and acres per day but capture more crop.

    • Reduce cutterbar loss by 25 percent – John Deere grain-saver draper belts help trap free grain before it can roll past the cutterbar onto the ground (compared to standard draper belts) with a special crosshair design, saving up to 10.9 L/ha (0.125 bu/acre) of canola which adds up to $1240 USD ($1750 CAD) a year across 607 ha (1,500 acres).
    • Cut header loss by up to 26 percent – Decrease header loss in high-volume canola with large fingered top augers (compared to non-fingered augers) that grab fluffy crops and pull them against the draper belts. Fingered top augers let you easily straight-cut canola while saving up to 6.1 L/ha (0.07 bu/acre) and which adds up to $700 USD ($985 CAD) a year across 607 ha (1,500 acres).
    • Capture more crop with the center section seal kit – Reduce center section losses up to 45 percent, adding an extra 2.6 L/ha (0.03 bu/acre). This saves $330 (USD) / $465 (CAD) of canola a year across 1,500 acres.
    • Quickly match changing crops and conditions – Factory base equipment helps you adjust the feed rate speed, drum height, and finger timing in less than 20 minutes. In addition, convert from off-ground cutting to on-ground cutting in less than 10 seconds. This is up to a minute faster than MacDon® FD1.
    • In-cab settings help you spend more time harvesting – In-cab float pressure adjustment saves time during the day compared to out-of-cab, by-hand adjustments on competitive models. Ensure your draper is operating at peak performance with five ground condition settings to follow fields better without leaving the cab.

    This list of features helps you capture more crop. While other draper manufacturers would leave grain behind, the only thing you’ll see in the rearview mirror is a field with even stubble and a uniform coating of straw, allowing you to know that during the winter, your field will be ready for next year’s seed.


    MacDon is a trademark of MacDon Industries Ltd.

Auxiliary top auger

Type Optional: hydraulic drive
250-350 rpm
Size Diameter: 43.2 cm
17 in.
Fingered augers Optional
